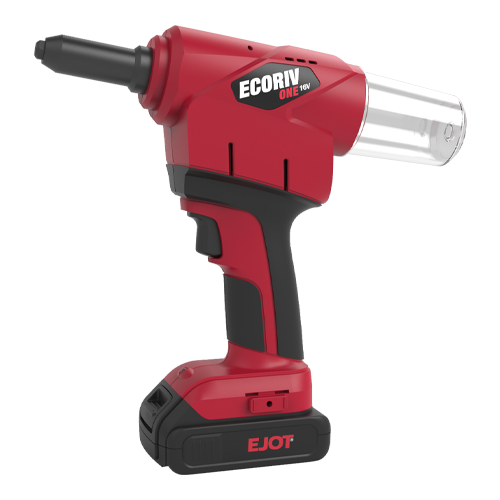

EJOT® ECORIV® ONE battery riveting tool 16.0V / 2.0 Ah
Specification
-
Applications
- For blind rivets made of aluminium, steel, copper and stainless steel up to Ø 5.0 mm
- For folding blind rivets up to Ø 5.2 mm
-
Benefits
- Weight only 1.87 kg
- Transparent mandrel container
- Powerful Li-Ion batteries with charge indicator
- Riveting point illuminated by LEDs
- Delivery with retention nosepieces for rivets 2.4 mm, 3.0/3.2 mm, 4.0 mm and 4.8/5.0 mm
- High-quality rapid charger
- Prolonged front sleeves are optional
- Special nosepieces are optional
-
Technical specifications
- Working stroke: 21 mm
- Tensile force: 10,000 N
- Max. pin diameter: 3.4 mm
- Battery capacity 2.0 Ah: Up to 2,000 pcs. (Rivets per battery charge depend on type and material)
- Charging time of battery 2.0 Ah: < 1 hour
- Weight of riveting tool: 1.54 kg
- Weight of battery 16 V / 2.0 Ah: 0.33 kg
- Height (without battery): approx. 24 cm
- Length (incl mandrel container): approx. 28 cm
Included in delivery
1 battery riveter ECORIV ONE
4 retention nosepieces

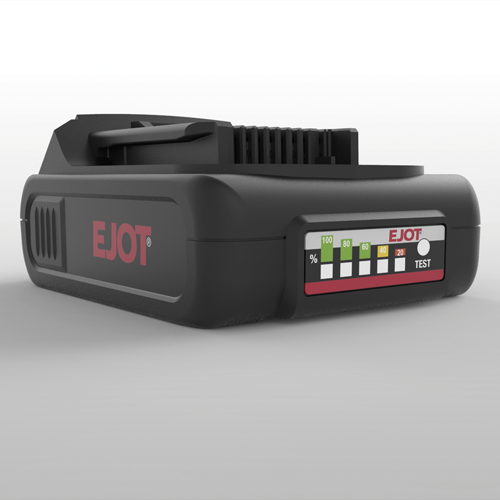

2 batteries 2.0 Ah

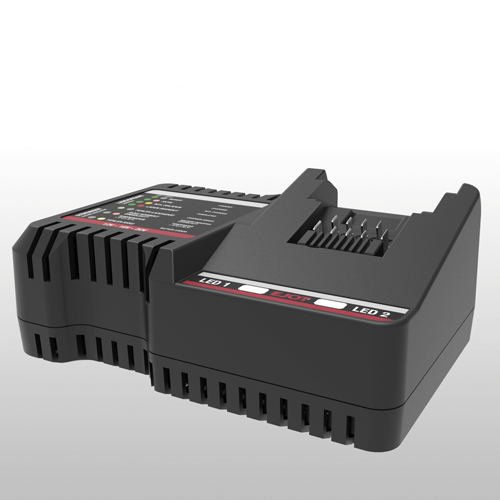

1 rapid charger 220 V
1 installation wrench

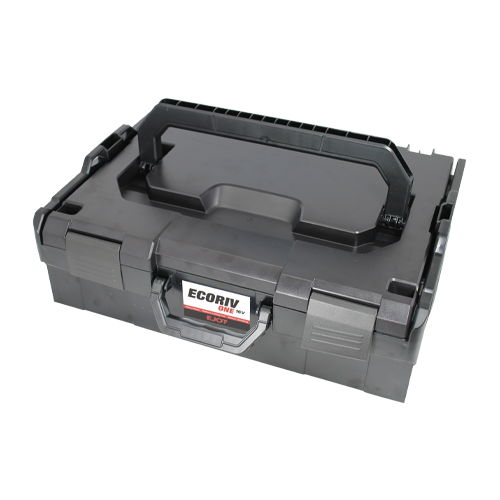

1 plastic transport box L-BoxxOrder information: ECORIV TWO upon request. Standard and special nosepieces upon request.
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Weight kg | Battery capacity Ah | Unit | Availability | * Price / | |
|---|---|---|---|---|---|---|---|
| EJOT ECORIV ONE 5.1 K 14/49 | 9150490180 | 1.54 | 1.5 | ||||
| EJOT ECORIV ONE 5.0 K 16/49 | 9150490181 | 1.54 | 1.5 | ||||
| EJOT universal fast charger for ECORIV ONE | 9150490195 | 1.54 | 1.5 | ||||
