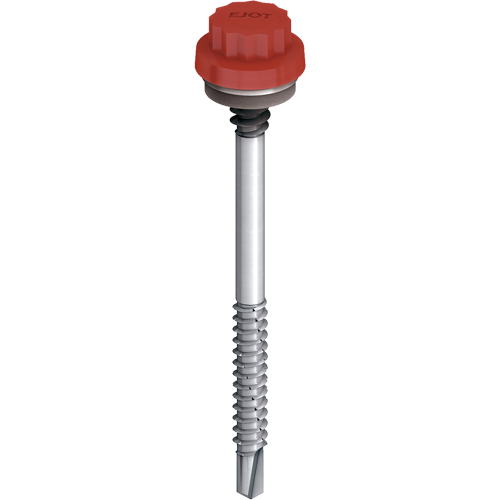

COLORFAST® CF19 JT3 D6H 5.5/6.3

Specification

  • Applications

    • Steel Profiled insulated sandwich panels to light to medium steel sections
    • Steel Profiled insulated sandwich panels to timber sections 45-50mm embedment
  • Properties

    • A2 Austenitic Stainless Steel fastener with Carbon steel drill point
    • Assembled with integral Nylon head and Aluminium/EPDM vulcanised sealing washer
  • Technical specifications

    • 11mm Bi-Hex Socket
    • Steel sections from 1.2 to 6.0mm in thickness

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

Important: Colour resolution may vary depending on your personal screen settings. Remember to use BSC or RAL code for an exact match. Lead time on “available soon” Colorfast Fasteners is approximately 3-5 working days. Other colours are available, please email salesuk@ejot.com or call 01977 687040 for further information

* To see prices,  please log in here.

Filter

Select system

  • BSC
    Select unit
    • Albatross BSC - 18-B-17
    • Goosewing Grey BCS 10-A-05
    • Juniper BSC 12-B-29
    • Merlin Grey BSC 18-B-25
    • Moorland Green BSC 12-B-21
    • Olive Green BSC 12-B-27
    • Solent Blue BSC4800 18E53
    • Van Dyke Brown BSC 09-B-29
    • White BSC 00-E-55
  • RAL
    Select unit
    • RAL7012
    • RAL7016
    • RAL7035
    • RAL9006
    • RAL9010

Selected filters

    Orderidentifier Article Number Length mm ø mm Head Colour Ø CF Sealing Washer Clamp thickness mm Unit Availability * Price / 100
    CF19 JT3 D6H 5.5/6.3 x 67 Goosewing Grey BSC 10-A-05 9900060224 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    Goosewing Grey BCS 10-A-05
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 67 Goosewing Grey BSC 10-A-05
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 D6H 5.5/6.3 x 67 Olive Green BSC 12-B-27 9900060258 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    Olive Green BSC 12-B-27
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 67 Olive Green BSC 12-B-27
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 D6H 5.5/6.3 x 67 White BSC 00-E-55 9900060409 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    White BSC 00-E-55
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 67 White BSC 00-E-55
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 D6H 5.5/6.3 x 67 Merlin Grey BSC 18-B-25 9900100235 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    Merlin Grey BSC 18-B-25
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 67 Merlin Grey BSC 18-B-25
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 D6H 5.5/6.3 x 67 Van Dyke Brown BSC 08-B-29 9900101729 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    Van Dyke Brown BSC 09-B-29
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 67 Van Dyke Brown BSC 08-B-29
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3-D6H-5.5/6.3 x 67 Albatross BSC 18-B-17 9900102404 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    Albatross BSC - 18-B-17
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3-D6H-5.5/6.3 x 67 Albatross BSC 18-B-17
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3-D6H-5.5/6.3 x 67 Solent Blue BSC 18-E-53 9900106157 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    Solent Blue BSC4800 18E53
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3-D6H-5.5/6.3 x 67 Solent Blue BSC 18-E-53
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3-D6H-5.5/6.3 x 67 Pure White RAL 9010 9900106329 67.0 5.5 19 33.0 - 46.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    67.0
    ø
    5.5
    Head Colour
    RAL9010
    Ø CF Sealing Washer
    19
    Clamp thickness
    33.0 - 46.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3-D6H-5.5/6.3 x 67 Pure White RAL 9010
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 D6H 5.5/6.3 x 87 Goosewing Grey BSC 10-A-05 5608719049 87.0 5.5 19 40.0 - 66.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    87.0
    ø
    5.5
    Head Colour
    Goosewing Grey BCS 10-A-05
    Ø CF Sealing Washer
    19
    Clamp thickness
    40.0 - 66.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 87 Goosewing Grey BSC 10-A-05
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 D6H 5.5/6.3 x 87 Olive Green BSC 12-B-27 9900060233 87.0 5.5 19 40.0 - 66.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    87.0
    ø
    5.5
    Head Colour
    Olive Green BSC 12-B-27
    Ø CF Sealing Washer
    19
    Clamp thickness
    40.0 - 66.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 D6H 5.5/6.3 x 87 Olive Green BSC 12-B-27
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price

    Delivery status:

    • Stock
    • No Stock
