Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

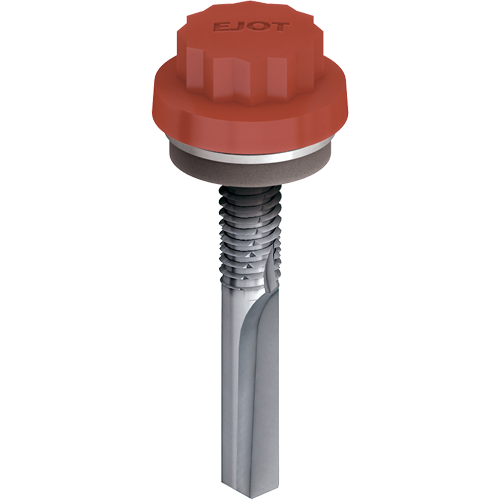

COLORFAST® CF15 HS 5.5
Specification
-
Applications
- For profiled roofing and cladding sheets to hot rolled steel sections
-
Properties
- Assembled with an integral Nylon head and Aluminium/EPDM vulcanised sealing washer
-
Technical specifications
- Drive: 11mm Bi-Hex Socket
- Steel sections: from 4.0 to 12.0mm in thickness
- Material: Carbon Steel with an organic corrosion-resistant finish
- Washer: 15mm.
- Note: This product is available with a 19mm washer (CF19 HS) or a 29mm washer (CF29 HS 5.5 x 25)
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Select system
-
BSC
Select unit
- Albatross BSC - 18-B-17
- Black BSC 00-E-53
- Goosewing Grey BCS 10-A-05
- Juniper BSC 12-B-29
- Merlin Grey BSC 18-B-25
- Moorland Green BSC 12-B-21
- Ocean Blue BSC 18-C-39
- Olive Green BSC 12-B-27
- Terracotta BSC 04-C-39
- Van Dyke Brown BSC 09-B-29
- Wedgewood BSC 18-C-37
- White BSC 00-E-55
-
RAL
Select unit
- RAL080 70 10
- RAL5003
- RAL7012
- RAL7016
- RAL7035
- RAL9006
Selected filters
| Orderidentifier | Article Number | ø mm | Ø CF Sealing Washer | Length mm | Head Colour | Clamp thickness mm | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CF15 HS 5.5 x 38 Ocean Blue BSC 18-C-39 | 5603815006 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Moorland Green BSC 12-B-21 | 5603815009 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Wedgewood BSC 18-C-37 | 5603815017 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Merlin Grey BSC 18-B-25 | 5603815019 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Anthracite Grey RAL 7016 | 5603815025 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Goosewing Grey BSC 10-A-05 | 5603815049 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Olive Green BSC 12-B-27 | 5603815064 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Van Dyke Brown BSC 08-B-29 | 5603815079 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Black BSC 00-E-53 | 5603815083 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Metallic Silver RAL 9006 | 5603815084 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Basalt Grey RAL 7012 | 5603815224 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Juniper BSC 12-B-29 | 5603815229 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 White BSC 00-E-55 | 5603815265 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Albatross BSC 18-B-17 | 5603815298 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Terracotta BSC 04-C-39 | 5603815439 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Sargasso RAL 5003 | 9900000010 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 38 Oyster RAL 7035 | 9900060176 | 5.5 | 15 | 38.0 | 4.0 - 12.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 Metallic Silver RAL 9006 | 5605515084 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 Albatross BSC 18-B-17 | 5605515817 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 Goosewing Grey BSC 10-A-05 | 9900060272 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 Merlin Grey BSC 18-B-25 | 9900101181 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 White BSC 00-E-55 | 9900101704 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 Basalt Grey RAL 7012 | 9900102865 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 55 Black BSC 00-E-53 | 9900104094 | 5.5 | 15 | 55.0 | 4.0 - 26.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 65 Goosewing Grey BSC 10-A-05 | 5606515049 | 5.5 | 15 | 65.0 | 4.0 - 37.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 65 Olive Green BSC 12-B-27 | 5606515227 | 5.5 | 15 | 65.0 | 4.0 - 37.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 65 Albatross BSC 18-B-17 | 9900060314 | 5.5 | 15 | 65.0 | 4.0 - 37.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 65 Anthracite Grey RAL 7016 | 9900103227 | 5.5 | 15 | 65.0 | 4.0 - 37.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Merlin Grey BSC 18-B-25 | 5607615019 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Goosewing Grey BSC 10-A-05 | 5607615049 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Metallic Silver RAL 9006 | 5607615084 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Mushroom BSC 10-B-19 | 9900101717 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Olive Green BSC 12-B-27 | 9900102302 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Van Dyke Brown BSC 08-B-29 | 9900102536 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Anthracite Grey RAL 7016 | 9900103888 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
| CF15 HS 5.5 x 76 Albatross BSC 18-B-17 | 9900104101 | 5.5 | 15 | 76.0 | 4.0 - 48.0 | 12.0 | 100 | ||||
