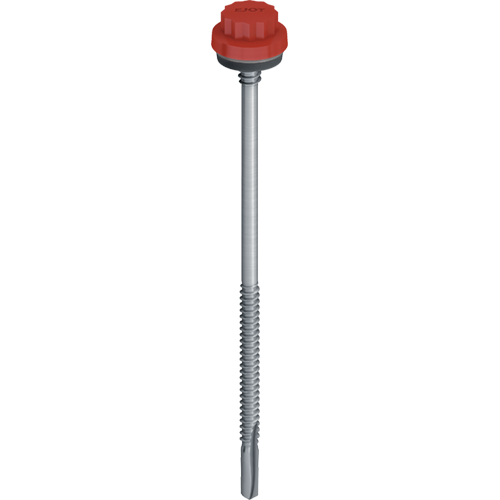

COLORFAST® CF15 JT6 D12H 5.5/6.3
Specification
-
Applications
- Steel profiled insulated sandwich panels to hot rolled steel sections.
-
Properties
- Assembled with integral nylon head and aluminium/EPDM vulcanised sealing washer.
-
Technical specifications
- 11mm Bi-Hex socket.
- Steel sections from 4.0mm to 12.0mm in thickness.
- Material: A4 Austenitic stainless steel fastener with carbon steel drill point.
- Washer ⌀: 15mm
- Note: This product is available with a 19mm washer (CF19 JT6 D12H 5.5/6.3)
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Select system
-
RAL
Select unit
- RAL080 70 10
-
BSC
Select unit
- Goosewing Grey BCS 10-A-05
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | High thread Ø mm | Ø CF Sealing Washer | Head Colour | Clamp thickness mm | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CF15 JT6-D-12H-5.5/6.3 x 115 Mushroom BSC 10 B 19 | 9900107378 | 115.0 | 5.5 | 6.3 | 15 | 66.0 - 88.0 | 12.0 | 100 | ||||
| CF15 JT6-D-12H-5.5/6.3 x 135 Mushroom BSC 10-B-19 | 9900107444 | 135.0 | 5.5 | 6.3 | 15 | 80.0 - 108.0 | 12.0 | 100 | ||||
| CF15 JT6-D-12H-5.5/6.3 x 155 Goosewing Gresy BSC 10-A-05 | 9900108934 | 155.0 | 5.5 | 6.3 | 15 | 100.0 - 128.0 | 12.0 | 100 | ||||
| CF15 JT6-D-12H-5.5/6.3 x 175 Goosewing grey BSC 10-A-05 | 9900108935 | 175.0 | 5.5 | 6.3 | 15 | 118.0 - 148.0 | 12.0 | 100 | ||||
| CF15 JT6-D-12H-5.5/6.3 x 245 Goosewing Grey BSC 10-A-05 | 9900108937 | 245.0 | 5.5 | 6.3 | 15 | 178.0 - 218.0 | 12.0 | 100 | ||||
