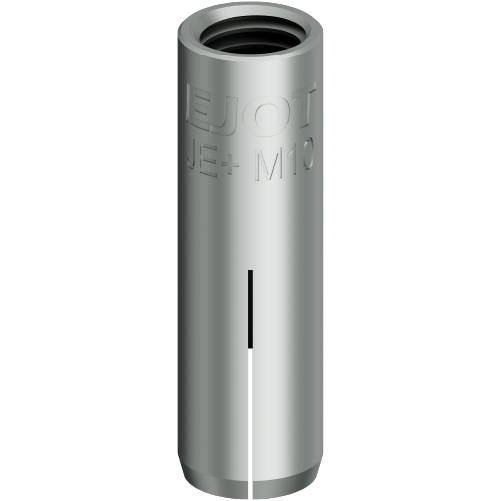

EJOT® JE+ Drop-in Anchor

Specification

Applications
- For indoor, outdoor and industrial use
- Suitable bolt length is 1-1.5 x the nominal size of the anchor + fixture thickness
Properties
- Stainless A4 drop-in anchor without flange
- Internal thread for metric bolts and rods
- M6 – M12 options available
- Lengths: 25 – 50mm
Technical specifications
- ETA Approved for cracked concrete & non-cracked concrete
- Also suitable for natural stone & solid clay brick
Additional information

Downloads

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Thread	Length mm	Material	Pilot Hole Ø mm	Unit
Drop in anchor JE+ 6	9650070113	M6	25.0	Stainless Steel (A4)	8.0	100
Specifications Thread M6 Length 25.0 Material Stainless Steel (A4) Pilot Hole Ø 8.0 Availability Orderidentifier Drop in anchor JE+ 6 Unit 100 * Price / 100
Drop in anchor JE+ 8	9650070114		30.0	Stainless Steel (A4)	10.0	100
Specifications Thread Length 30.0 Material Stainless Steel (A4) Pilot Hole Ø 10.0 Availability Orderidentifier Drop in anchor JE+ 8 Unit 100 * Price / 100
Drop in anchor JE+ 10	9650070115		40.0	Stainless Steel (A4)	12.0	100
Specifications Thread Length 40.0 Material Stainless Steel (A4) Pilot Hole Ø 12.0 Availability Orderidentifier Drop in anchor JE+ 10 Unit 100 * Price / 100
Drop in anchor JE+ 12	9650070116		25.0	Stainless Steel (A4)	15.0	100
Specifications Thread Length 25.0 Material Stainless Steel (A4) Pilot Hole Ø 15.0 Availability Orderidentifier Drop in anchor JE+ 12 Unit 100 * Price / 100
