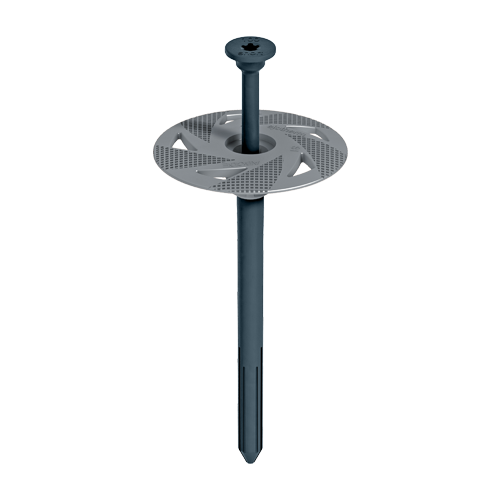

EJOT® ejotherm® Screw-in anchor S1 short
Specification
-
Applications
- For fastening external thermal insulation systems with a render layer
- Specifically developed for thin insulating materials (20 - 60 mm), for example high-performance insulation > 20 mm as well as reveal boards and ceiling insulation boards > 20 mm
- Installation in all substrates
- Surface fixed installation
-
Properties
- Approved for all building material categories (A, B, C, D, E)
- Highly comfortable installation and assembly
- Optimised thermal bridge
- Can be mounted with additional washer VT 90 and SBL 140 plus
-
Technical specifications
- Anchor diameter: 8 mm
- Washer diameter: 60 mm
- Drill hole depth h1≥ Use category A - D: 40 mm
Drill hole depth h1≥ Use category E: 60 mm - Embedmentdepth hef ≥ Use category A - D: 30 mm
Embedmentdeph hef ≥ Use category E: 50 mm - Screw drive: IPR 30 (5 lobe)
- Insulation material thickness: 20 - 60 mm
- Use categories: A, B, C, D, E
- Characteristic loads can be found in the brochure
Additional information
ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Unit |
|---|---|---|---|
| ejotherm S1 short 60 | 8715060570 | 60.0 | 100 |
Specifications
|
|||
| ejotherm S1 short 80 | 8715080570 | 80.0 | 100 |
Specifications
|
|||
| ejotherm S1 short 100 | 8715100570 | 100.0 | 100 |
Specifications
|
