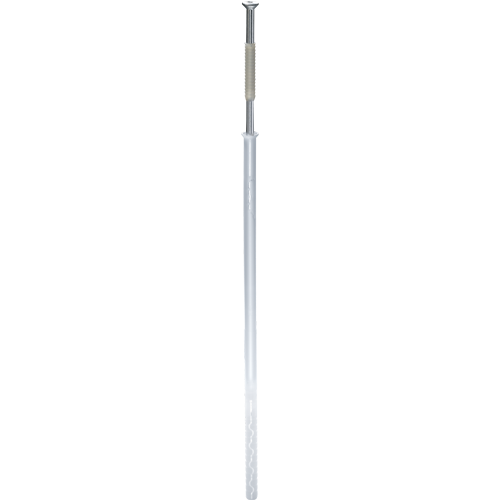

EJOT® VSD 8U-V

EJOT-VSD-8U-V

Specification

  • Applications

    • Double expansion renovation anchor with zinc-plated steel screw for cavity wall masonry.
    • Cost-effective restoring of the structural integrity.
    • For concrete, solid and hollow brick (A,B,C).
    • Check with local building control for suitability.
    • A4 stainless steel pin available-contact EJOT for details.

  • Properties

    • Universal expansion zone:secure installation into load-bearing concrete, solid and perforated brick cavity walls masonry.
    • Double expansion wall anchor: ensures anchorage into substructure and curtain walls.
    • Clean and fast installation (no mortar required).
    • 100% installation control.
    • Temperature-independent installation.

  • Technical specifications

    • Embedment depth hef:≥ 70 mm
    • Drill hole depth ts:≥ Id + 10 mm
    • Nominal drill diameter: 8 mm
    • Minimum thickness of the outer sheet: 115 mm
    • Drive Hexalobular drive: TX30

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.

Filter

Selected filters

    Orderidentifier Article Number Length mm Minimum thickness of the outer leaf mm Distance inner and outer shell mm Embedment depth hef≥ Unit
    VSD 8U-V x 205 8765205400 205.0 115.0 0.0 - 20.0 70.0 100

    Specifications

    Length
    205.0
    Minimum thickness of the outer leaf
    115.0
    Distance inner and outer shell
    0.0 - 20.0
    Embedment depth hef≥
    70.0
    Drill hole depth
    80.0
    Orderidentifier
    VSD 8U-V x 205
    Unit
    100
    VSD 8U-V x 225 8765225400 225.0 115.0 20.0 - 40.0 70.0 100

    Specifications

    Length
    225.0
    Minimum thickness of the outer leaf
    115.0
    Distance inner and outer shell
    20.0 - 40.0
    Embedment depth hef≥
    70.0
    Drill hole depth
    80.0
    Orderidentifier
    VSD 8U-V x 225
    Unit
    100
    VSD 8U-V x 245 8765245400 245.0 115.0 40.0 - 60.0 70.0 100

    Specifications

    Length
    245.0
    Minimum thickness of the outer leaf
    115.0
    Distance inner and outer shell
    40.0 - 60.0
    Embedment depth hef≥
    70.0
    Drill hole depth
    80.0
    Orderidentifier
    VSD 8U-V x 245
    Unit
    100
    VSD 8U-V x 265 8765265400 265.0 115.0 60.0 - 80.0 70.0 100

    Specifications

    Length
    265.0
    Minimum thickness of the outer leaf
    115.0
    Distance inner and outer shell
    60.0 - 80.0
    Embedment depth hef≥
    70.0
    Drill hole depth
    80.0
    Orderidentifier
    VSD 8U-V x 265
    Unit
    100
    VSD 8U-V x 285 8765285400 285.0 115.0 80.0 - 100.0 70.0 100

    Specifications

    Length
    285.0
    Minimum thickness of the outer leaf
    115.0
    Distance inner and outer shell
    80.0 - 100.0
    Embedment depth hef≥
    70.0
    Drill hole depth
    80.0
    Orderidentifier
    VSD 8U-V x 285
    Unit
    100
    VSD 8U-V x 305 8765305400 305.0 115.0 100.0 - 120.0 70.0 100

    Specifications

    Length
    305.0
    Minimum thickness of the outer leaf
    115.0
    Distance inner and outer shell
    100.0 - 120.0
    Embedment depth hef≥
    70.0
    Drill hole depth
    80.0
    Orderidentifier
    VSD 8U-V x 305
    Unit
    100
