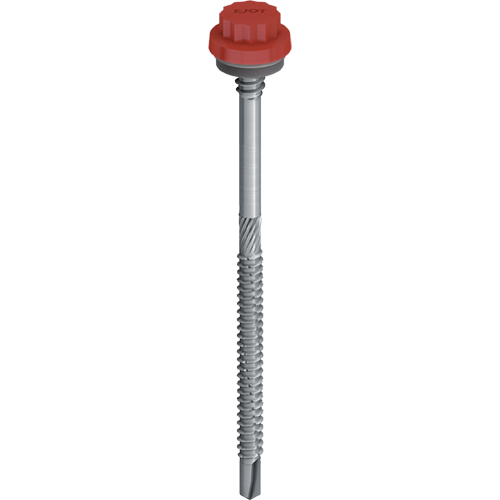

COLORFAST® CF15 JT2 D6 5.5/6.3
Specification
-
Applications
- Steel Profiled insulated sandwich panels to light to medium steel sections.
- Steel Profiled insulated sandwich panels to Timber with 45-50mm embedment.
-
Properties
- Carbon steel with organic corrosion resistant finish.
- Assembled with integral Nylon head and aluminium/EPDM vulcanised sealing washer.
-
Technical specifications
- 11m Bi hex Socket.
- Steel sections from 1.2mm to 6.0mm in thickness.
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
Important: Colour resolution may vary depending on your personal screen settings. Remember to use BSC or RAL code for an exact match. Lead time on “available soon” Colorfast Fasteners is approximately 3-5 working days. Other colours are available, please email salesuk@ejot.com or call 01977 687040 for further information
* To see prices, please log in here.
Filter
Select system
-
BSC
Select unit
- Albatross BSC - 18-B-17
- Black BSC 00-E-53
- Goosewing Grey BCS 10-A-05
- Juniper BSC 12-B-29
- Merlin Grey BSC 18-B-25
- Moorland Green BSC 12-B-21
- Ocean Blue BSC 18-C-39
- Olive Green BSC 12-B-27
- Van Dyke Brown BSC 09-B-29
- White BSC 00-E-55
-
RAL
Select unit
- RAL080 70 10
- RAL5003
- RAL7012
- RAL7016
- RAL7035
- RAL7037
- RAL9006
- RAL9007
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Head Colour | Ø CF Sealing Washer | Clamp thickness mm | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CF15 JT2 D6 5.5/6.3 x 62 Goosewing Grey BSC 10-A-05 | 9900060319 | 62.0 | 5.5 | 15 | 36.0 - 48.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 62 White BSC 00-E-55 | 9900103295 | 62.0 | 5.5 | 15 | 36.0 - 48.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 62 Black BSC 00-E-53 | 9900104181 | 62.0 | 5.5 | 15 | 36.0 - 48.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Metallic Silver RAL9006 | 5408215084 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Goosewing Grey BSC 10-A-05 | 9900060040 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Basalt Grey RAL7012 | 9900060750 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Ocean Blue BSC 18-C-39 | 9900103460 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Merlin Grey BSC 18-B-25 | 9900103516 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 White BSC 00-E-55 | 9900103518 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Juniper BSC 12-B-29 | 9900104372 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Moorland Green BSC 18-B-21 | 9900104373 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Albatross BSC 18-B-17 | 9900104374 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Sargasso RAL5003 | 9900104376 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Dusty Grey RAL7037 | 9900104377 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Oyster RAL7035 | 9900104378 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Black BSC 00-E-53 | 9900104379 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Mushroom BSC 10-B-19 | 9900104380 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 82 Grey Aluminium RAL9007 | 9900104381 | 82.0 | 5.5 | 15 | 28.0 - 68.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Olive Green BSC 12-B-27 | 9900030210 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Goosewing Grey BSC 10-A-05 | 9900060012 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Metallic Silver RAL9006 | 9900060389 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Van Dyke Brown BSC 08-B-29 | 9900104382 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Juniper BSC 12-B-29 | 9900104383 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Moorland Green BSC 18-B-21 | 9900104384 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Albatross BSC 18-B-17 | 9900104385 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Anthracite Grey RAL7016 | 9900104386 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Dusty Grey RAL7037 | 9900104387 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Oyster RAL7035 | 9900104388 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Black BSC 00-E-53 | 9900104389 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Mushroom BSC 10-B-19 | 9900104390 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 102 Basalt Grey RAL7012 | 9900104391 | 102.0 | 5.5 | 15 | 48.0 - 88.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Goosewing Grey BSC 10-A-05 | 9900100743 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Basalt Grey RAL7012 | 9900102018 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Oyster RAL7035 | 9900102752 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 White BSC 00-E-55 | 9900102903 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Merlin Grey BSC 18-B-25 | 9900103520 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Metallic Silver RAL9006 | 9900103521 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Van Dyke Brown BSC 08-B-29 | 9900104393 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Juniper BSC 12-B-29 | 9900104394 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Moorland Green BSC 12-B-21 | 9900104395 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Albatross BSC 18-B-17 | 9900104396 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Anthracite Grey RAL7016 | 9900104397 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Sargasso RAL5003 | 9900104398 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Dusty Grey RAL7037 | 9900104399 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Black BSC 00-E-53 | 9900104400 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Mushroom BSC 10-B-19 | 9900104401 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Olive Green BSC 12-B-27 | 9900104402 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Grey Aluminium RAL9007 | 9900104403 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 122 Ocean Blue BSC 18-C-39 | 9900104404 | 122.0 | 5.5 | 15 | 68.0 - 108.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x135 Mushroom BSC 10-B-19 | 9900106415 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x135 White BSC 00-E-55 | 9900106416 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x135 Goosewing Grey BSC 10-A-05 | 9900106417 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 135 Merlin Grey BSC 18-B-25 | 9900106419 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 135 Olive Green BSC 12-B-27 | 9900106420 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2-D6-5.5/6.3 x135 Metallic Silver-RAL 9006 | 9900106421 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x135 Black BSC 00-E-53 | 9900106423 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 135 Juniper BSC 12-B-29 | 9900106424 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2-D6-5.5/6.3 x135-Anthracite Grey- RAL 7016 | 9900106426 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2-D6-5.5/6.3 x135 Oyster-RAL 7035 | 9900106427 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 135 Albatross BSC 18-B-17 | 9900106428 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2-D6-5.5/6.3 x135 Basalt Grey-RAL 7012 | 9900106429 | 135.0 | 5.5 | 15 | 81.0 - 121.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Goosewing Grey BSC 10-A-05 | 5415215049 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Metallic Silver RAL9006 | 5415215084 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Merlin Grey BSC 18-B-25 | 5415215825 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Grey Aluminium RAL9007 | 9900102957 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 White BSC 00-E-55 | 9900103323 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Anthracite Grey RAL7016 | 9900103829 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Olive Green BSC 12-B-27 | 9900104405 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Van Dyke Brown BSC 08-B-29 | 9900104406 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Juniper BSC 12-B-29 | 9900104407 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Moorland Green BSC 12-B-21 | 9900104408 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Sargasso RAL5003 | 9900104409 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Dusty Grey RAL7037 | 9900104410 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Oyster RAL7035 | 9900104411 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Black BSC 00-E-53 | 9900104412 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Mushroom BSC 10-B-19 | 9900104413 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Basalt Grey RAL7012 | 9900104414 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 152 Ocean Blue BSC 18-C-39 | 9900104415 | 152.0 | 5.5 | 15 | 98.0 - 138.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Goosewing Grey BSC 10-A-05 | 5417215005 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 White BSC 00-E-55 | 5417215265 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Oyster RAL7035 | 9900102228 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Merlin Grey BSC 18-B-25 | 9900102722 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Metallic Silver RAL9006 | 9900103524 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Olive Green BSC 12-B-27 | 9900104416 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Van Dyke Brown BSC 08-B-29 | 9900104417 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Juniper BSC 12-B-29 | 9900104418 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Moorland Green BSC 12-B-21 | 9900104419 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 | ||||
| CF15 JT2 D6 5.5/6.3 x 172 Anthracite Grey RAL7016 | 9900104420 | 172.0 | 5.5 | 15 | 118.0 - 158.0 | 6.0 | 100 |
