Drive Socket
Used to drive EJOT fasteners and is to be used directly into a screwgun

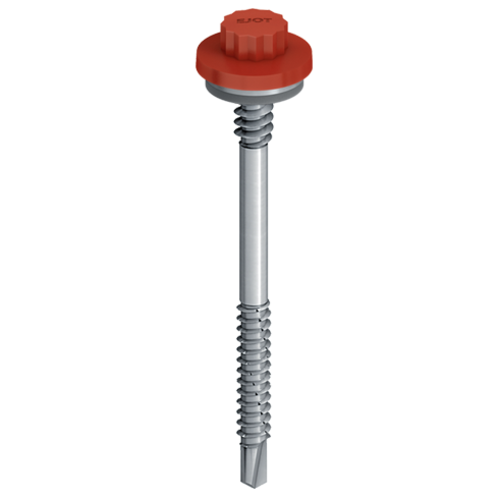

COLORFAST® CF19 JT2 D6 5.5/6.3
Specification
-
Applications
- Steel Profiled insulated sandwich panels to light to medium steel sections.
- Steel Profiled insulated sandwich panels to Timber with 45-50 embedment.
-
Properties
- Carbon steel with organic corrosion resistant finish.
- Assembled with integral Nylon head and Aluminium/EPDM vulcanised sealing washer.
-
Technical specifications
- 11mm Bi-Hex Socket.
- Steel sections from 1.2 to 6.0 mm in thickness.
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
Important: Colour resolution may vary depending on your personal screen settings. Remember to use BSC or RAL code for an exact match. Lead time on “available soon” Colorfast Fasteners is approximately 3-5 working days. Other colours are available, please email salesuk@ejot.com or call 01977 687040 for further information
* To see prices, please log in here.
Filter
Select system
-
BSC
Select unit
- Albatross BSC - 18-B-17
- Goosewing Grey BCS 10-A-05
- Juniper BSC 12-B-29
- Merlin Grey BSC 18-B-25
- Moorland Green BSC 12-B-21
- Ocean Blue BSC 18-C-39
- Olive Green BSC 12-B-27
- Van Dyke Brown BSC 09-B-29
- Wedgewood BSC 18-C-37
- White BSC 00-E-55
-
RAL
Select unit
- RAL5003
- RAL7012
- RAL7016
- RAL7035
- RAL9006
- RAL9007
- RAL9010
-
other
Select unit
- Black
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Head Colour | Ø CF Sealing Washer | Clamp thickness mm | Unit | Availability | * Price / 100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CF19 JT2 D6 5.5/6.3 82 Goosewing Grey BSC 10-A-05 | 5408200049 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 82 Merlin Grey BSC-18-B-25 | 9900000111 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 82 Metallic Silver RAL9006 | 9900060529 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 82 White BSC 00-E-55 | 9900100040 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 82 Olive Green BSC 12-B-27 | 9900102330 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 82 Wedgewood Blue BSC 18-C-37 | 9900103248 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 82 Van Dyke Brown BSC 08-B-29 | 9900104753 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 82 Juniper BSC 12-B-29 | 9900105200 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 82 Anthracite Grey RAL 7016 | 9900105800 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 82 Albatross | 9900106007 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 82 Ocean Blue BSC 18-C-39 | 9900106117 | 82.0 | 5.5 | 19 | 28.0 - 68.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 102 Goosewing Grey BSC 10-A-05 | 5410219049 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 102 Moorland Green BSC 12-B-21 | 5410219221 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 102 White BSC 00-E-55 | 9900100039 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 102 Van Dyke Brown BSC 08-B-29 | 9900101740 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 102 Olive Green BSC 12-B-27 | 9900102032 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 102 Metallic Silver RAL9006 | 9900103102 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 102 Merlin Grey BSC 18-B-25 | 9900103541 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 102 Juniper BSC 12-B-29 | 9900106817 | 102.0 | 5.5 | 19 | 48.0 - 88.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 122 Olive Green BSC 12-B-27 | 9900060568 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 122 Goosewing Grey BSC 10-A-05 | 9900100164 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 122 White BSC 00-E-55 | 9900100807 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Albatross BSC 18-B-17 | 9900100869 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 122 Metallic Silver RAL9006 | 9900103194 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 122 Merlin Grey BSC 18-B-25 | 9900103542 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 122 Van Dyke Brown BSC 08-B-29 | 9900104754 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Wedgewood BSC 18-C-37 | 9900105693 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Moorland Green BSC 12-B-21 | 9900105747 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Black BSC 00-E-53 | 9900106041 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Anthracite Grey RAL 7016 | 9900106135 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Pure White RAL 9010 | 9900106633 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Sargasso RAL 5003 | 9900106882 | 122.0 | 5.5 | 19 | 68.0 - 122.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 122 Grey Aluminium RAL 9007 | 9900107086 | 122.0 | 5.5 | 19 | 68.0 - 108.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 135 Juniper BSC 12-B-29 | 9900106791 | 135.0 | 5.5 | 19 | 81.0 - 121.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 152 Goosewing Grey BSC 10-A-05 | 5415219005 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 152 Merlin Grey BSC 18-B-25 | 5415219019 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 152 White BSC 00-E-55 | 9900101293 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 152 Olive Green BSC 12-B-27 | 9900101896 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 152 Anthracite Grey RAL 7016 | 9900103197 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 152 Juniper BSC 12-B-29 | 9900103253 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 152 Metallic Silver RAL9006 | 9900103544 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 152 Van Dyke Brown BSC 08-B-29 | 9900104755 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 152 Albatross BSC 18-B-17 | 9900105528 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 152 Moorland Green BSC 12-B-21 | 9900105745 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 152 Oyster RAL 7035 | 9900106864 | 152.0 | 5.5 | 19 | 98.0 - 138.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 172 Goosewing Grey BSC 10-A-05 | 5417219005 | 172.0 | 5.5 | 19 | 118.0 - 158.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 172 Merlin Grey BSC 18-B-25 | 9900060437 | 172.0 | 5.5 | 19 | 118.0 - 158.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 172 Metallic Silver RAL9006 | 9900060666 | 172.0 | 5.5 | 19 | 118.0 - 158.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 172 Juniper BSC 12-B-29 | 9900101227 | 172.0 | 5.5 | 19 | 118.0 - 158.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2 D6 5.5/6.3 x 172 Olive Green BSC 12-B-27 | 9900102564 | 172.0 | 5.5 | 19 | 118.0 - 158.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 172 Basalt Grey RAL 7012 | 9900107312 | 172.0 | 5.5 | 19 | 118.0 - 158.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 192 Goosewing Grey BSC 10-A-05 | 9900106717 | 192.0 | 5.5 | 19 | 138.0 - 178.0 | 6.0 | 11mm Bi Hex | 100 | ||||
| CF19 JT2-D6-5.5/6.3 x 232 Wedgewood Blue BSC 18-C-37 | 9900106896 | 232.0 | 5.5 | 19 | 178.0 - 218.0 | 6.0 | 11mm Bi Hex | 100 | ||||
