EJOT® H3


Specification

  • Applications

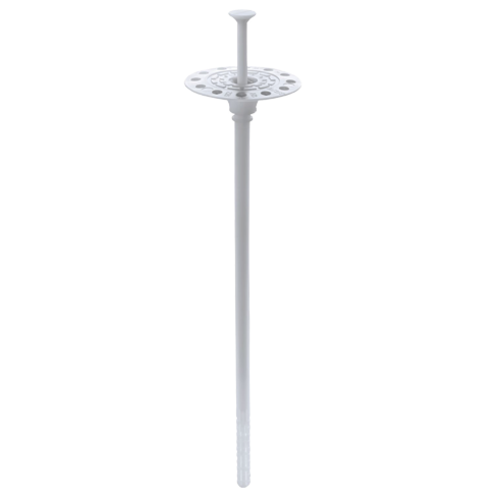

    • Universal hammer-in anchor with plastic expansion pin, flexible washer.
    • For concrete, solid and perforated masonry (A,B,C).
    • For all insulation boards.
    • With European Technical Assessment (ETA).

  • Properties

    • Approved for concrete, solid and perforated masonry.
    • Precise installation with self-levelling washer.
    • The flexible washer assures optimum positioning on the insulation surface, even if pilot holes are slightly off-square.
    • Glass-reinforced pin to reduce thermal transmission.
    • Short embedment depths, minimum drill hole depth.
    • Minimised risk of breaking nails due to glass fibre-reinforced composites.
    • Can be used with an additional spreader washer
    • A. Normal weight concrete C 20/25 acc. to EN 206-1 0.6 kN.
    • A. Normal weight concrete C 50/60 acc. to EN 206-1 0.6 kN.
    • B. Clay bricks (Mz) acc. to DIN 105 0.6kN.
    • B. Solid lime sandstone (KS) acc. to DIN EN 106 0.6 kN.
    • C. Vertically perforated clay bricks (Hlz) acc. to DIN, 0.6 kN bulk density, ≥1.2kg/dm³.
    • C. Vertically perforated clay bricks (Hlz) acc. to DIN, 0.5 kN bulk density, ≥0.8kg/dm³.
    • C. Sand-lime perforated bricks (KSL) acc. to DIN EN 106, 0.6 kN.

  • Technical specifications

    • Anchor diameter 8mm.
    • Washer diameter 60mm.
    • Drill hole depth h1≥35mm.
    • Embedment depth hef≥25mm.
    • Point thermal transmission 0.000 W/K.
    • Use categories acc. to ETA A,B,C.
    • European Technical Assessment ETA-14/0130.

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.

Filter

Selected filters

    Orderidentifier Article Number Washer diameter mm Anchor diameter mm Length mm Substrate Categories Unit
    EJOT H3 075 8573075100 60.0 8.0 75.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    75.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 075
    Unit
    500
    EJOT H3 095 8573095100 60.0 8.0 95.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    95.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 095
    Unit
    500
    EJOT H3 115 8573115100 60.0 8.0 115.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    115.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 115
    Unit
    500
    EJOT H3 135 8573135100 60.0 8.0 135.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    135.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 135
    Unit
    500
    EJOT H3 155 8573155100 60.0 8.0 155.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    155.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 155
    Unit
    500
    EJOT H3 175 8573175100 60.0 8.0 175.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    175.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 175
    Unit
    500
    EJOT H3 195 8573195100 60.0 8.0 195.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    195.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 195
    Unit
    500
    EJOT H3 215 8573215100 60.0 8.0 215.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    215.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 215
    Unit
    500
    EJOT H3 235 8573235100 60.0 8.0 235.0 A-C 500

    Specifications

    Washer diameter
    60.0
    Anchor diameter
    8.0
    Length
    235.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Washer Anchors
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    EJOT H3 235
    Unit
    500
