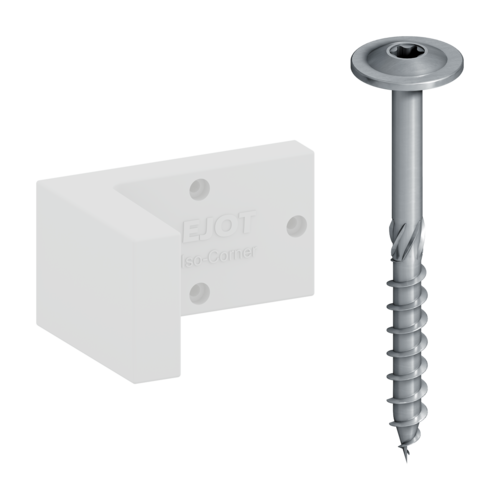

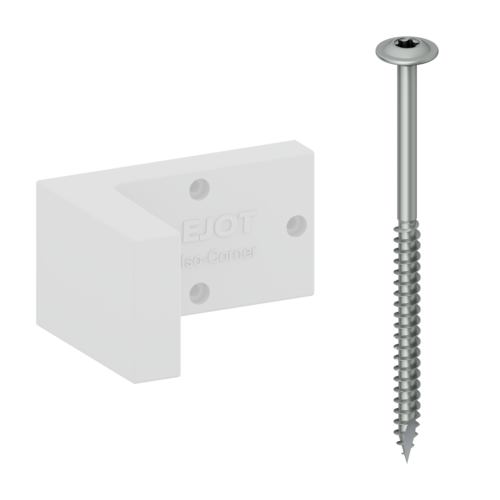

EJOT® Iso-Corner kit T-FAST®

Specification

  • Applications

    • For the approved fastening of the Iso-Corner on timber substrates
    • Consisting of 3 pieces T-FAST® woodscrew JW2-STS-8
  • Properties

    • Carbon steel with zinc-plated surface
    • Plate increases the pulling power
    • Partial thread with milling ribs at the transition to the non-threaded part reduces the installation torque and simplifies the installation process
    • Optimised thread geometry for extremely fast processing
    • Aggressive tip attack ensures a firm grip in the timber
  • Technical specifications

    • Diameter: 8.0 mm
    • Head diameter: 20 mm
    • Drive: hexalobular TX40
    • Installation depth: 40 mm



    Note: Please note the European Technical Approval ETA-18/0812 in your planning and in the processing of the products. Further information about parameters and loads can be found in the approval.

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.

Filter

Selected filters

    Orderidentifier Article Number Unit
    Iso-Corner kit T-Fast 120 8778000120 1

    Specifications

    Orderidentifier
    Iso-Corner kit T-Fast 120
    Unit
    1
    Iso-Corner kit T-Fast 140 8778000140 1

    Specifications

    Orderidentifier
    Iso-Corner kit T-Fast 140
    Unit
    1
