• Applications

    • To fix roofing membranes and insulating material to substructures made of sheet steel ≥ 0.70 mm ≤ 1.5 mm, timber or wood-based material
    • For new buildings
    • For the installation with ECOSET HTK installation tool up to 280 mm total panel thickness
    • For special requirements of resistance to imposed loads
    • To reduce thermal bridges
  • Properties

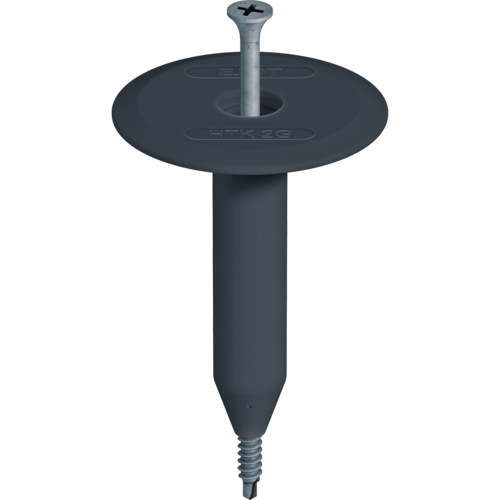

    • Stress plate: high-grade plastic material
    • DABO® screw TKR = case-hardened steel, Climadur*-coated > Telescope design for resistance to imposed loads
    • Combinations for total panel thicknesses up to 605 mm possible
    • Processing in an upright position possible with the bit extension with spring pin or with the ECOSET HTK installation tool
  • Note

    Upon request also available with VHT-R and VHT-E

    High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Orderidentifier Article Number Recess Depth mm Insulation thickness mm Screw length mm Unit Availability * Price /
HTK-2G-TKR-100-55/70-loose, pre-assembled 3705507024 55.0 100.0 70.0 Please login to check the price Please login to check the price


Recess Depth
Insulation thickness
Screw length
HTK-2G-TKR-100-55/70-loose, pre-assembled
* Price /
Please login to check the price Please login to check the price

Delivery status:

  • Stock
  • No Stock
