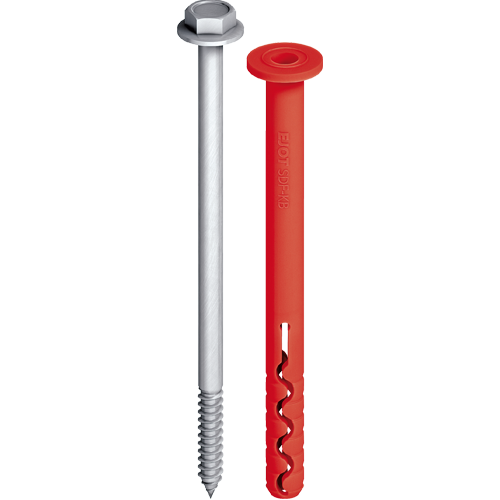

EJOT® SDF KB 8V


Specification
-
Applications
- For the embedment of metal substructures in solid brick masonry and concrete
- For multiple fastening of non-load-bearing systems according to EAD 330284-00-0604
-
Properties
- Hexagon head with flange
- Small drill hole diameter
- Thermal and galvanic separation
- Product identification through different sleeve colours
Approved for
- Cracked concrete
- Non-cracked concrete
- Solid masonry
Note
For planning and processing, please observe ETA-15/0387. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure -
Technical specifications
- Diameter: 8.0 mm
- Drive: Hexagon A/F10
- Drill hole depth ≥ h1: 60 mm
- Embedment depth ≥ hnom: 50 mm
Permitted load*
- Tensile strength NRk,p in concrete < C16/20: 1.79 kN
- Tensile strength NRk,p in concrete ≥ C16/20: 2.58 kN
- Brick Mz 28-1,8, NF: 0.71 kN
- Solid lime sand brick KS, NF 20-2,0: 0.57 kN
- Shear load capacity VRk,s:
Steel screw (γMs = 1.25): 4.24 kN - Bending moment MRk,s:
Steel screw (γMs = 1.25): 6.56 Nm
*applies to temperature range 30-50 °C/50-80 °C
