EJOT® Flat roof profile FP
Specification
-
Applications
- To fix roofing membrane to substructures made of concrete, aerated concrete, steel, aluminium trapezoidal profile, timber and wood-based materials
- For structural fastening of the edges

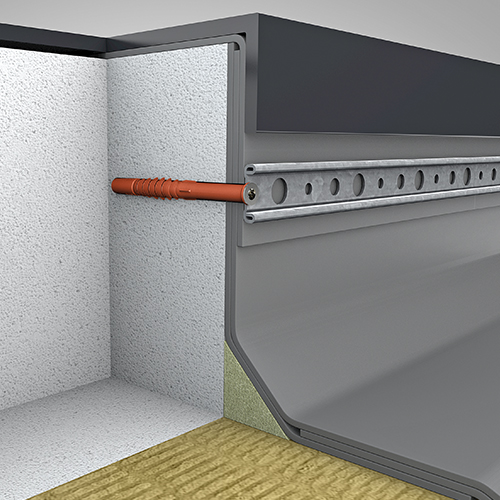

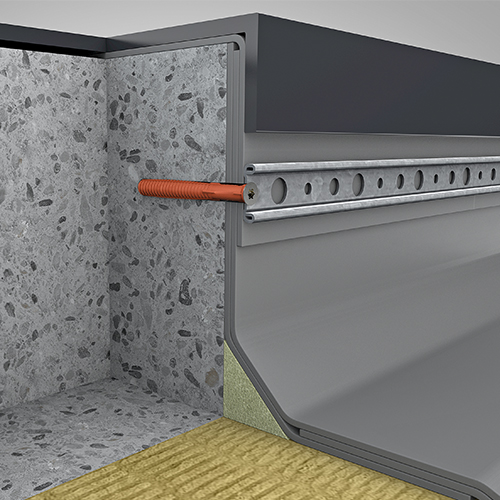

- For fastening the edges of roofing membrane on wall connections and roof edges
-
Properties
- Alu-zinc-coated steel
- Metal rail fastening system
- Easy processing
- Low weight
- 3 different hole diameters combined in one profile
- Total length 2.25 m
- Flexible areas of application
Notice

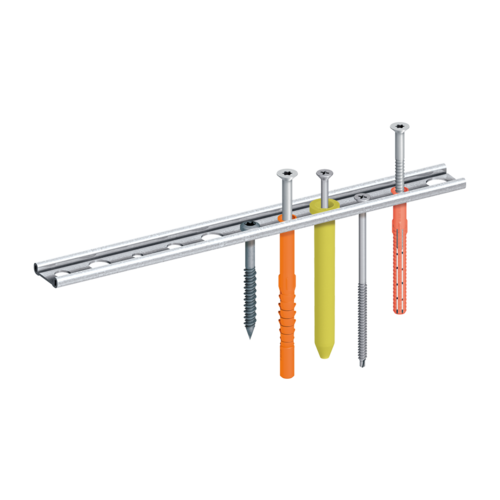

For combination with EJOT Dabo® screws, concrete and aerated concrete screws and self-drilling screws.
For combination with EJOT facade anchors according to ETA-10/0305.
-
Technical specifications
- Length: 2.25 m
- Width: 30 mm
- Height incl. fold edge: 7.5 mm
- Thickness: 1.5 mm
- Hole diameter
- for stress plates HTK-S: 14.5 mm
- for facade anchors: 10.5 mm
- for screws: 7.0 mm
* To see prices, please log in here.
| Orderidentifier | Article Number | Length mm | Width mm | Unit | Availability | * Price / | |
|---|---|---|---|---|---|---|---|
| Flat roof profile FP | 7999001886 | 2250.0 | 30.0 | ||||
