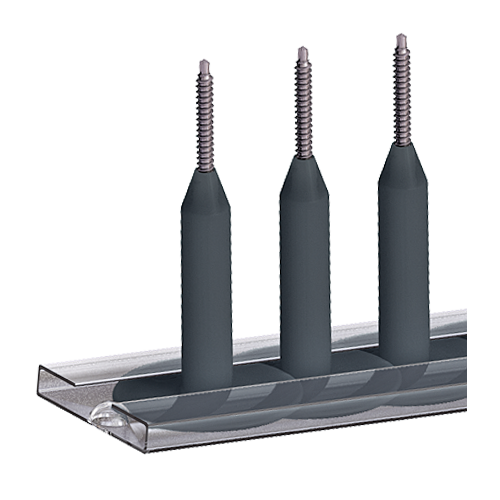

EJOT® stress plate HTK-M

Applications

• To fix roofing membrane
• New buildings and renovations
• For installation with EJOT^® ECOset HTK installation tool
• For special requirements of resistance to imposed loads
• To reduce thermal bridges

Notice
For combination with EJOT Dabo^® screws. Drilling  capacity = 4 mm on request!

Properties

• Stress plate: high-grade plastic material
• Dabo^® screw TKR/VHT-R = case-hardened steel, Climadur* coated
• Dabo^® screw TKE/VHT-E = A4 stainless steel

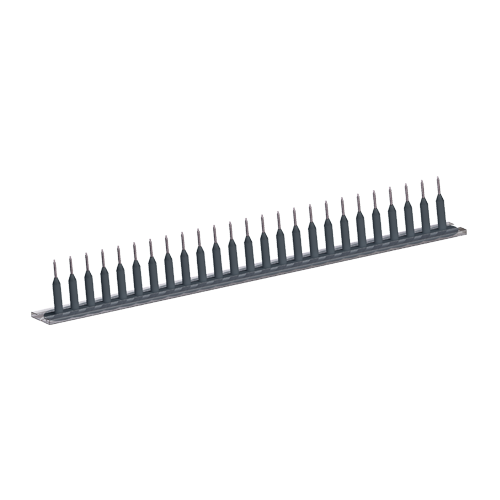

• collated
• Telescope design for resistance to imposed loads
• Combinations for insulation thicknesses up to 605 mm on request

*Climadur
High-grade coating to improve the corrosion protection
(15 Kesternich cycles, DIN 50018, 1997)

Technical specifications

• Drilling capacity: 1.50 mm
• Collator capacity: 25 pc.
