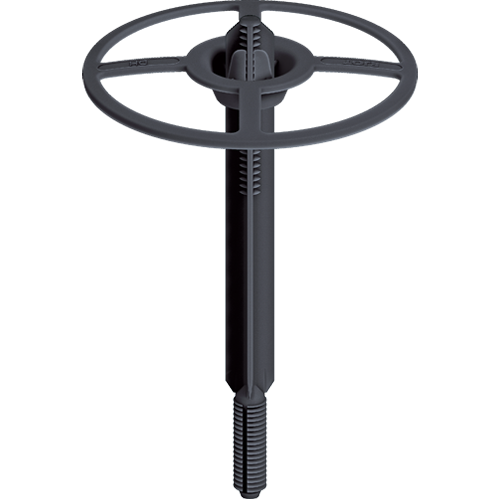

EJOT® insulation support anchor DH 2 Piece insulation support anchor
Specification
-
Applications
- For fixing thermal insulation to rear ventilated facades
- Suitable for blockword, brickwork and concrete
-
Properties
- Manufactured from high grade polyethelene
- Innovative two part system creates set embedment depth
- Prevents sideways buckling of the shank
- Prevents quilting of insulation
-
Technical specifications
- Hammer in anchor
- Drill diameter: 8 mm
- Set embedment depth of 30mm
- Apply shank through insulation, or push insulation over shank
- Seperate washer face diameter is: 90 mm
Order information: stress plate and shank also available separately
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Pilot Hole Ø mm | Material | Insulation thickness mm | Unit | * Price / | |
|---|---|---|---|---|---|---|---|---|
| Set DH-60 | 8550060009 | 8.0 | 8.0 | Plastic | 60.0 | |||
| Set DH-80 | 8550080009 | 8.0 | 8.0 | Plastic | 80.0 | |||
| Set DH-100 | 8550100009 | 8.0 | 8.0 | Plastic | 100.0 | |||
| Set DH-120 | 8550120009 | 8.0 | 8.0 | Plastic | 120.0 | |||
| Set DH-140 | 8550140009 | 8.0 | 8.0 | Plastic | 140.0 | |||
| Set DH-180 | 8550180009 | 8.0 | 8.0 | Plastic | 180.0 | |||
| Set DH-200 | 8550200009 | 8.0 | 8.0 | Plastic | 200.0 | |||
| Set DH-220 | 8550220009 | 8.0 | 8.0 | Plastic | 220.0 | |||
| Set DH-240 | 8550240009 | 8.0 | 8.0 | Plastic | 240.0 | |||
| Set DH-260 | 8550260009 | 8.0 | 8.0 | Plastic | 260.0 | |||
| Set DH-280 | 8550280009 | 8.0 | 8.0 | Plastic | 280.0 | |||
| Set DH-300 | 8550300009 | 8.0 | 8.0 | Plastic | 300.0 | |||
