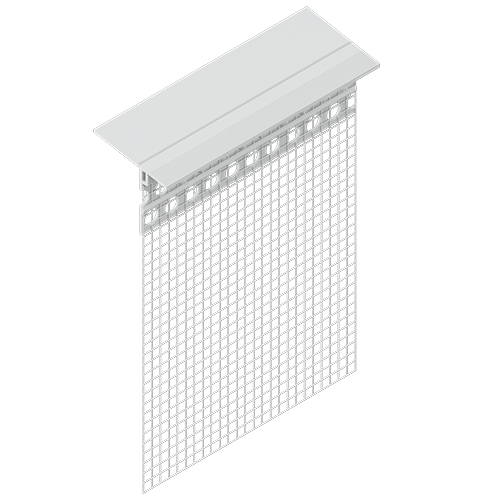

EJOT® FBP-F06-13/01

Applications

• Window sill profile film 13mm
• To support the creation of a second sealing level and a clean plaster finish under the windowsill. The upper leg without holes is used to apply a suitable sealing film. The required inclination of at least 5 degrees for water drainage is maintained by the profile geometry. A material taper on the upper leg enables flexible on-site adjustments to the inclination.

Properties

• Exact and clean plaster connection
• Required window sill inclinations can be implemented using flexible profile geometry
• Aligned and plumb edges thanks to rectangular connector
• Targeted drainage of water
• Technical data
• Hard PVC profile with glass fiber fabric 160 g alkali-resistant and non-slip
• Glass fiber fabric 12.5cm
• Store in a cool and dry place
• Transport and storage lying down
• Sealing film is not included in the scope of delivery - the sealing is carried out on site

Technical specifications

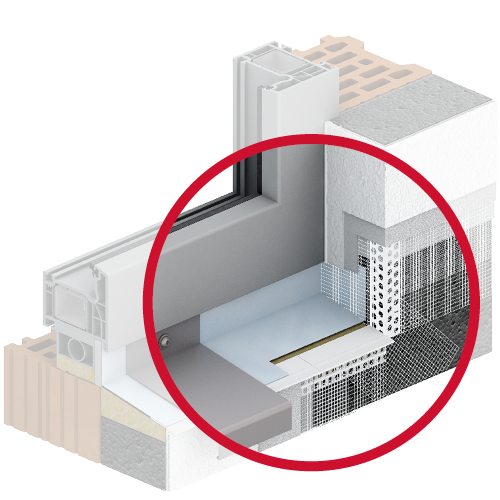

• Apply the reinforcing compound across the width of the fabric strip, below the edge of the insulation material. Embed the profile horizontally and flush into the still fresh reinforcement compound. The sealing under the window sill is done using a suitable sealing film, which must be installed in accordance with the manufacturer's specifications and attached to the profile. When carrying out the surface reinforcement, the glass fiber fabric must be overlapped up to the take-off edge. In addition, a diagonally embedded fabric layer (diagonal reinforcement) is installed in the corners; we recommend using prefabricated EJOT reinforcement arrows.

Additional information

• View Construction Brochures
