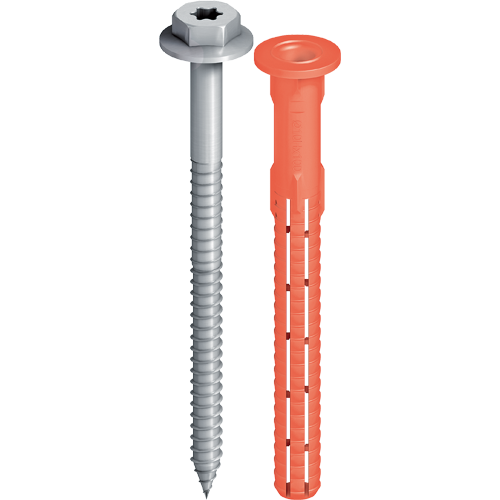

EJOT® SDF KB 10H

Specification

  • Applications

    • For installation of metal components to solid concrete, blockwork and brick
    • This anchor is also designed for lightweight concrete and perforated brickwork
  • Properties

    • Available in zinc plated carbon steel or A4 Stainless steel set screw both used with a with nylon plug
  • Technical specifications

    • Drive : 13mm One Piece Socket or Torx 40.
    • Anchor with a minimum embedment depth of 70 mm
    • 10mm pilot hole
    • This product has a Euopean technical approval (ETA)

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Sleeve Diameter mm Material Length mm Unit Availability * Price / 100
    SDF KB 10H x 80V 8513080420 10.0 Carbon Steel 80.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Carbon Steel
    Length
    80.0
    Clamping thickness B ≥
    10.0
    Availability
    Orderidentifier
    SDF KB 10H x 80V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 80E 8513080620 10.0 Stainless Steel 80.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Stainless Steel
    Length
    80.0
    Clamping thickness B ≥
    10.0
    Availability
    Orderidentifier
    SDF KB 10H x 80E
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 100V 8513100420 10.0 Carbon Steel 100.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Carbon Steel
    Length
    100.0
    Clamping thickness B ≥
    30.0
    Availability
    Orderidentifier
    SDF KB 10H x 100V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 100E 8513100620 10.0 Stainless Steel 100.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Stainless Steel
    Length
    100.0
    Clamping thickness B ≥
    30.0
    Availability
    Orderidentifier
    SDF KB 10H x 100E
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 120V 8513120420 10.0 Carbon Steel 120.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Carbon Steel
    Length
    120.0
    Clamping thickness B ≥
    50.0
    Availability
    Orderidentifier
    SDF KB 10H x 120V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 120E 8513120620 10.0 Stainless Steel 120.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Stainless Steel
    Length
    120.0
    Clamping thickness B ≥
    50.0
    Availability
    Orderidentifier
    SDF KB 10H x 120E
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 140V 8513140420 10.0 Carbon Steel 140.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Carbon Steel
    Length
    140.0
    Clamping thickness B ≥
    70.0
    Availability
    Orderidentifier
    SDF KB 10H x 140V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 140E 8513140620 10.0 Stainless Steel 140.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Stainless Steel
    Length
    140.0
    Clamping thickness B ≥
    70.0
    Availability
    Orderidentifier
    SDF KB 10H x 140E
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 160V 8513160420 10.0 Carbon Steel 160.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Carbon Steel
    Length
    160.0
    Clamping thickness B ≥
    90.0
    Availability
    Orderidentifier
    SDF KB 10H x 160V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    SDF KB 10H x 160E 8513160620 10.0 Stainless Steel 160.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    10.0
    Material
    Stainless Steel
    Length
    160.0
    Clamping thickness B ≥
    90.0
    Availability
    Orderidentifier
    SDF KB 10H x 160E
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
