Blow-out pump
For cleaning drill holes in concrete and solid brick masonry

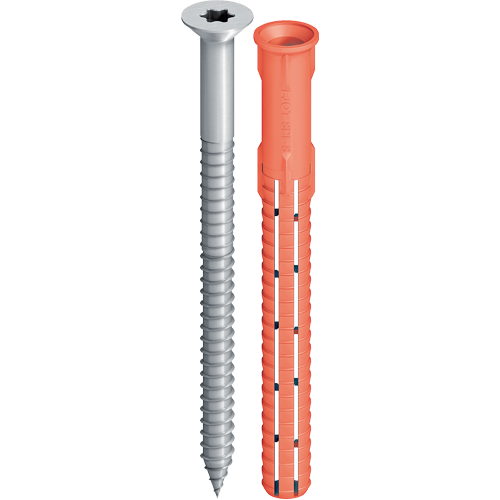

EJOT® SDF S 10H
Specification
-
Applications
- For installation of metal and timber components to solid concrete, blockwork and brick
- This anchor is also designed for lightweight concrete and perforated brickwork
-
Properties
- Available in zinc plated carbon steel used with a with nylon plug
-
Technical specifications
- Drive : TX40
- Anchor with a minimum embedment depth of 70 mm
- 10mm pilot hole
- This product has a Euopean technical approval (ETA)
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Sleeve Diameter mm | Clamping thickness tfix≤ mm |
Screw-in-/hammer-inanchor | Drive | Material | Length mm | Property Type (Solar) | Substrate Type (Solar) | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDF S 10H x 80V | 8510080420 | 10.0 | 10.0 | Screw anchor | TORX T40 | Carbon Steel | 80.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 80E | 8510080620 | 10.0 | 10.0 | Screw anchor | TORX T40 | Stainless Steel | 80.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 100V | 8510100420 | 10.0 | 30.0 | Screw anchor | TORX T40 | Carbon Steel | 100.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 120V | 8510120420 | 10.0 | 50.0 | Screw anchor | TORX T40 | Carbon Steel | 120.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 140V | 8510140420 | 10.0 | 70.0 | Screw anchor | TORX T40 | Carbon Steel | 140.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 160V | 8510160420 | 10.0 | 90.0 | Screw anchor | TORX T40 | Carbon Steel | 160.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 180V | 8510180420 | 10.0 | 110.0 | Screw anchor | TORX T40 | Carbon Steel | 180.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 200V | 8510200420 | 10.0 | 130.0 | Screw anchor | TORX T40 | Carbon Steel | 200.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
||||||||||||||
| SDF S 10H x 220V | 8510220420 | 10.0 | 150.0 | Screw anchor | TORX T40 | Carbon Steel | 220.0 | Agricultural | Aluminium | Common roof tile | 100 | |||
Specifications
|
Delivery status:
- Stock
- No Stock
