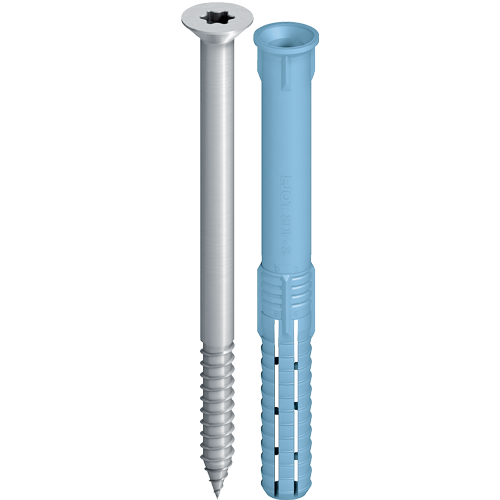

EJOT® SDF S 10V



Specification
-
Applications
- For installation of metal and timber components to solid concrete, blockwork and brick
-
Properties
- Only available in zinc plated carbon steel with a nylon plug
-
Technical specifications
- Drive : TX40
- Anchor with an embedment depth of 40 mm in concrete
- Embedment in masonry 50 mm
- 10mm pilot hole
- This product has a Euopean technical approval (ETA)
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
Orderidentifier | Article Number | Sleeve Diameter mm | Material | Length mm | Unit | Availability | * Price / 100 | |||
---|---|---|---|---|---|---|---|---|---|---|
SDF S 10V x 50V | 8580050450 | 10.0 | Zinc plated | 50.0 | 10.0 | 0.0 | 100 | |||
SDF S 10V x 60V | 8580060450 | 10.0 | Zinc plated | 60.0 | 20.0 | 10.0 | 100 | |||
SDF S 10V x 70V | 8580070450 | 10.0 | Zinc plated | 70.0 | 30.0 | 20.0 | 100 | |||
SDF S 10V x 80V | 8580080450 | 10.0 | Zinc plated | 80.0 | 40.0 | 30.0 | 100 | |||
SDF S 10V x 100V | 8580100450 | 10.0 | Zinc plated | 100.0 | 60.0 | 50.0 | 100 | |||
SDF S 10V x 120V | 8580120450 | 10.0 | Zinc plated | 120.0 | 80.0 | 70.0 | 100 | |||
SDF S 10V x 140V | 8580140450 | 10.0 | Zinc plated | 140.0 | 100.0 | 90.0 | 100 | |||
SDF S 10V x 160V | 8580160450 | 10.0 | Zinc plated | 160.0 | 120.0 | 110.0 | 100 | |||
SDF S 10V x 180V | 8580180450 | 10.0 | Zinc plated | 180.0 | 140.0 | 130.0 | 100 | |||
SDF S 10V x 200V | 8580200450 | 10.0 | Zinc plated | 200.0 | 160.0 | 150.0 | 100 | |||
SDF S 10V x 220V | 8580220450 | 10.0 | Zinc plated | 220.0 | 180.0 | 170.0 | 100 | |||
