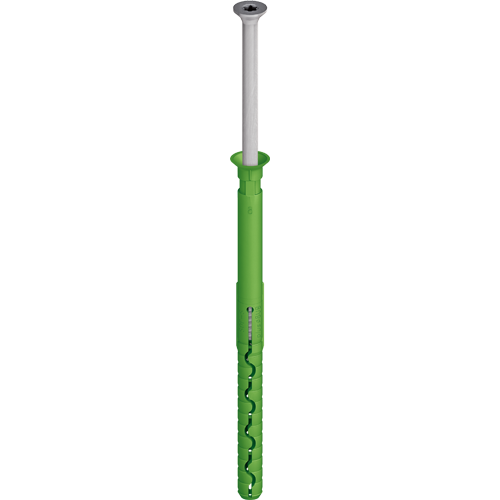

EJOT® SDF S plus 8UB

Applications

• Fastening of brick slip systems
• Brick slip system anchors for concrete and masonry
• Approved for concrete, solid and perforated masonry

Properties

• Approved for concrete, solid and perforated masonry
• Torsion-proof anchor tube
• Anchor tube with small countersunk head for unobtrusive installation in the joint
• Universal expansion zone for safe anchoring
• High loads
• Anchor with increased bending moment
• Premounted screw for quick installation

Technical specifications

• Anchor diameter: 8 mm
• Diameter of countersunk head: 12 mm
• Drill hole depth h₁ ≥: 80 mm
• Embedment depth h_ef ≥:  70 mm
• Screw drive: TX30
• German DIBt approval: Z-21.2-589

Characteristic loads:
Building material class A:

• Normal weight concrete ≥ C 12/15 acc. to EN 206-1: 1.0 kN
• Pre-cast concrete panel ≥ B15: 0.25 kN

Building material class B:

• Clay bricks(≥ Mz 12) acc. to DIN 105: 0.4 kN
• Solid lime sandstone (≥ KS 12) acc. to DIN EN 106: 0.4 kN
• Solid masonry of lightweight concrete (V) acc. to DIN 18152: 0.2 kN

Building material class C:

• Vertically perforated clay bricks Hlz) acc. to DIN 105: *
• Vertical coring reference brick(Hlz) acc. to ÖNORM B 6124: 0.75 kN
• Sand-lime perforated bricks(≥ KSL 6) acc. to DIN EN 106: 0.25 kN
• Lightweight concrete hollow blocks(≥ HbL 2) acc. to DIN 18151: 0.15 kN

Building material class D:

• Lightweight aggregate concrete acc. to TGL: 0.3 kN

*According to approval to be determined through pull-out testing at the building.

The design loads given are in accordance with the German building code. National safety factors are already incorporated. Please observe the approval.
