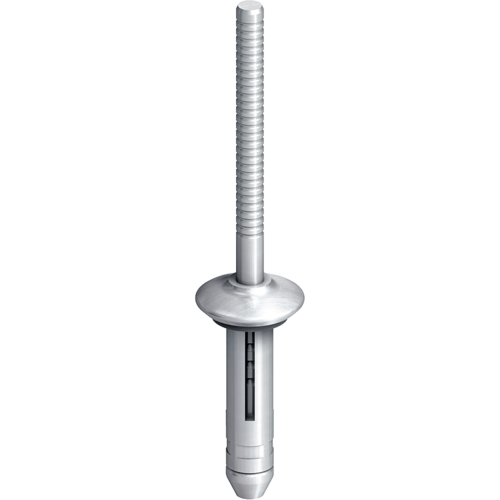

EJOT® Bulb tite rivet ECORIV® aluminium/aluminium

Specification

  • Applications

    • For aluminium or steel sections with a combination thickness within the specified grip range
  • Properties

    • Body made of aluminium (Al) with neoprene seal ring
    • Mandrel made of aluminium (Al)
    • Captive locked
    • ETA-22/0641
  • Technical specifications

    • Designed to expand forming individual claws on the underside of the application for maximum mechanical performance
    • 5.3 to 5.6mm diameter pilot hole

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Pilot Hole Ø mm Clamp thickness mm Unit Availability * Price / 100
    Bulbtite rivet ECORIV ALU 5.2x17.5 9385641000 5.2 17.5 5.3 - 5.6 1.3 - 4.7 100 Please login to check the price Please login to check the price

    Specifications

    ø
    5.2
    Length
    17.5
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    1.3 - 4.7
    Material
    Aluminium
    Availability
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x17.5
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Bulbtite rivet ECORIV ALU 5.2x20.5 9385642000 5.2 20.5 5.3 - 5.6 3.0 - 7.7 100 Please login to check the price Please login to check the price

    Specifications

    ø
    5.2
    Length
    20.5
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    3.0 - 7.7
    Material
    Aluminium
    Availability
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x20.5
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Bulbtite rivet ECORIV ALU 5.2x22.2 9385643000 5.2 22.2 5.3 - 5.6 4.8 - 9.5 100 Please login to check the price Please login to check the price

    Specifications

    ø
    5.2
    Length
    22.2
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    4.8 - 9.5
    Material
    Aluminium
    Availability
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x22.2
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Bulbtite rivet ECORIV ALU 5.2x25.4 9385644000 5.2 25.4 5.3 - 5.6 8.0 - 12.7 100 Please login to check the price Please login to check the price

    Specifications

    ø
    5.2
    Length
    25.4
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    8.0 - 12.7
    Material
    Aluminium
    Availability
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x25.4
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Bulbtite rivet ECORIV ALU 5.2x28.6 9385645000 5.2 28.6 5.3 - 5.6 11.1 - 16.9 100 Please login to check the price Please login to check the price

    Specifications

    ø
    5.2
    Length
    28.6
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    11.1 - 16.9
    Material
    Aluminium
    Availability
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x28.6
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Bulbtite rivet ECORIV ALU 5.2x31.8 9385646000 5.2 31.8 5.3 - 5.6 14.3 - 19.1 100 Please login to check the price Please login to check the price

    Specifications

    ø
    5.2
    Length
    31.8
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    14.3 - 19.1
    Material
    Aluminium
    Availability
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x31.8
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price

    Delivery status:

    • Stock
    • No Stock
