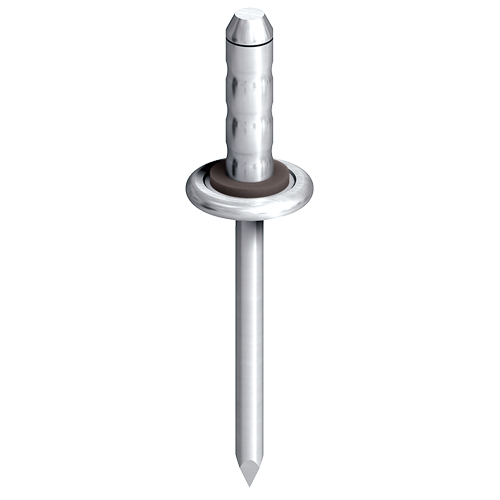

EJOT® D11 AL/V 4.8 rivet

Specification

  • Applications

    • For aluminium or steel sections with a combination thickness within the specified grip range
  • Properties

    • Aluminium body incorporating a neoprene and a carbon steel mandrel
  • Technical specifications

    • Designed to expand forming a varible grip to the underside of the application for maximum mechanical performance
    • 4.9 to 5.0mm diameter pilot hole
    • The sealing ring option is the full code with a (W) at the end

When choosing your product variant below, you can still complete your order including products displayed as available soon.
On completion of the checkout process you will receive an email confirming the delivery date of outstanding quantities.

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm Pilot Hole Ø mm Clamp thickness mm Unit Availability * Price / 100
    D11 AL/V 4.8 x 16 9900101769 16.0 5.0 - 4.9 0.1 - 11.0 200 Please login to check the price Please login to check the price

    Specifications

    Length
    16.0
    Pilot Hole Ø
    5.0 - 4.9
    Clamp thickness
    0.1 - 11.0
    Availability
    Orderidentifier
    D11 AL/V 4.8 x 16
    Unit
    200
    * Price / 100
    Please login to check the price Please login to check the price
    D11 AL/V 4.8 x 16 W With sealing washer 9990000086 16.0 4.9 - 5.0 0.1 - 11.0 200 Please login to check the price Please login to check the price

    Specifications

    Length
    16.0
    Pilot Hole Ø
    4.9 - 5.0
    Clamp thickness
    0.1 - 11.0
    Availability
    Orderidentifier
    D11 AL/V 4.8 x 16 W With sealing washer
    Unit
    200
    * Price / 100
    Please login to check the price Please login to check the price
