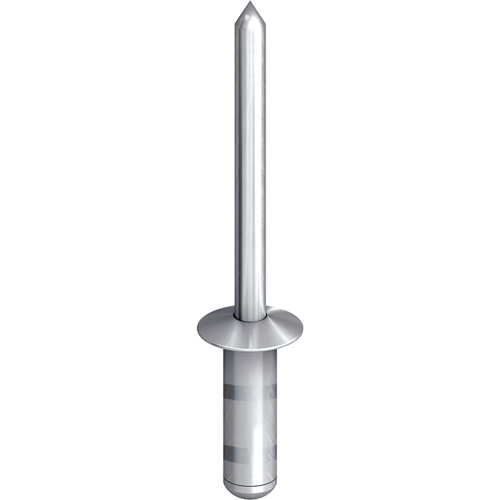

EJOT® Multigrip rivet ECORIV® aluminium/stainless steel

Specification

  • Applications

    • For side lap stitching of profiled sheet
  • Properties

    • Rivet body made of aluminium (Al)
    • Mandrel made of stainless steel (E)
    • Captive locked
    • ETA-22/0641
  • Technical specifications

    • Building authorities-approved rivets according to Z-14.1-4 available upon request.

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Pilot Hole Ø mm Clamp thickness mm Unit Availability * Price / 100
    Multi-range blind rivet ECORIV AL/E 4.0x9.5 9337360000 4.0 9.5 4.1 1.2 - 6.3 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.0
    Length
    9.5
    Pilot Hole Ø
    4.1
    Clamp thickness
    1.2 - 6.3
    Material
    Stainless Steel
    Availability
    Orderidentifier
    Multi-range blind rivet ECORIV AL/E 4.0x9.5
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Multi-range blind rivet ECORIV AL/E 4.0x9.5 RAL 9006 9337360084 4.0 9.5 4.1 1.2 - 6.3 Please login to check the price Please login to check the price

    Specifications

    ø
    4.0
    Length
    9.5
    Pilot Hole Ø
    4.1
    Clamp thickness
    1.2 - 6.3
    Material
    Stainless Steel
    Availability
    Orderidentifier
    Multi-range blind rivet ECORIV AL/E 4.0x9.5 RAL 9006
    Unit
    * Price / 100
    Please login to check the price Please login to check the price
    Multi-range blind rivet ECORIV AL/E 4.8x10.3 9337361000 4.8 10.3 4.9 1.6 - 6.3 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    10.3
    Pilot Hole Ø
    4.9
    Clamp thickness
    1.6 - 6.3
    Material
    Stainless Steel
    Availability
    Orderidentifier
    Multi-range blind rivet ECORIV AL/E 4.8x10.3
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Multi-range blind rivet ECORIV AL/E 4.8x15.1 9337362000 4.8 15.1 4.9 4.8 - 11.1 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    15.1
    Pilot Hole Ø
    4.9
    Clamp thickness
    4.8 - 11.1
    Material
    Stainless Steel
    Availability
    Orderidentifier
    Multi-range blind rivet ECORIV AL/E 4.8x15.1
    Unit
    * Price / 100
    Please login to check the price Please login to check the price
    Multi-range blind rivet ECORIV AL/E 4.8x24.8 9337363000 4.8 24.8 4.9 12.7 - 19.8 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    24.8
    Pilot Hole Ø
    4.9
    Clamp thickness
    12.7 - 19.8
    Material
    Stainless Steel
    Availability
    Orderidentifier
    Multi-range blind rivet ECORIV AL/E 4.8x24.8
    Unit
    * Price / 100
    Please login to check the price Please login to check the price
