Part 4:
Modularity means...

Greater anchoring versatility offered through modular design

Whilst there is no one size fits all approach to concrete anchoring, by adopting a modular approach to anchor design EJOT has made it possible to use a single product for multiple different purposes on the same project.

The LIEBIG Superplus BLS is renowned across the world for its heavy duty performance capabilities. But for many engineers and specifiers, the anchor’s appeal is equally due to its versatility. Through a modular design, one product can be tailored and specified to meet multiple different applications from garage equipment installation to mechanical and electrical supports.

The key to the versatility of Superplus BLS is the ability to choose different variants of the core parts of the anchor. The length and diameter of the threaded bolt and the distance sleeve can be sized within a wide range and the head styles can be chosen to suit the specific application requirements.

It all adds up to an application-specific anchoring solution that can be configured in a way that is normally associated only with 100% bespoke anchors, which are notoriously costly in small volumes and incur long lead times. From a “kN per £” perspective, this makes Superplus BLS amongst the most competitive concrete anchoring solutions available.

EJOT’s ability to provide this level of versatility with the Superplus BLS comes down to the way its UK manufacturing facility is set-up. LIEBIG anchors are assembled at its UK’s factory near Leeds, where production is designed with agility in mind to accommodate different volumes of anchors to meet customer needs at relatively short notice. And for UK customers, the additional benefit of local supply means less risk of international transport delays.

A consistent modular design applies to all Superplus anchors in the range, as well as offering the platform for ‘specials’. Whichever option is chosen, they all feature the innovative self-undercutting cone with teeth to create the undercut as it is drawn upwards when torque is applied during installation. No special tools are needed for creating the undercut, which speeds up the fitting process and reduces the potential for errors.

The core Superplus BLS anchor consists of a threaded rod with integral hex head. This is designed for through-fix post-installed application scenarios where installation is through the in-situ baseplate. This suits many different applications extremely well, especially given that the product is available in Grade 8.8 carbon steel, zinc plated, or A4-80 stainless steel for additional corrosion-resistance.

For pre-installed application scenarios, the BLS-P provides an ideal solution due to its extended threaded rod. This is designed to be used where anchor is installed into the concrete and the baseplate is dropped in over the top, prior to torque being set.

There are also two further options of Superplus range with alternative head styles. The SKLS features a countersunk head, which is ideal for applications such as balustrades and the SLS - A4. This is a self-undercutting anchor with a separate hexagon bolt head and washer, all in A4-80 stainless steel, designed for applications where appearance of the finished installation is important.

Beyond these standard options, there is great scope to adapt Superplus further as has been demonstrated in some of the recent ‘special variants’ created by EJOT. These include the LPA (Lightening Protection Anchor) where rebar is known to attract and transmit an electric current flow through. The LPA is used to ‘contact’ the rebar and serve as a means to direct the current to earth.

This high level of versatility, coupled with superior anchoring performance, ease of installation and flexibility to accommodate site circumstances, makes Superplus BLS a solution that fits with the construction industry’s ambitions to build more efficiently and to ever higher standards.
Paul Papworth - 640 x 377.png

Talk to an expert

Our highly experienced UK wide team offers a wealth of technical support and specialist guidance.

T: 01977 687040

Modularity means... Versatility - Video Thumbnail - 640 x 377.png

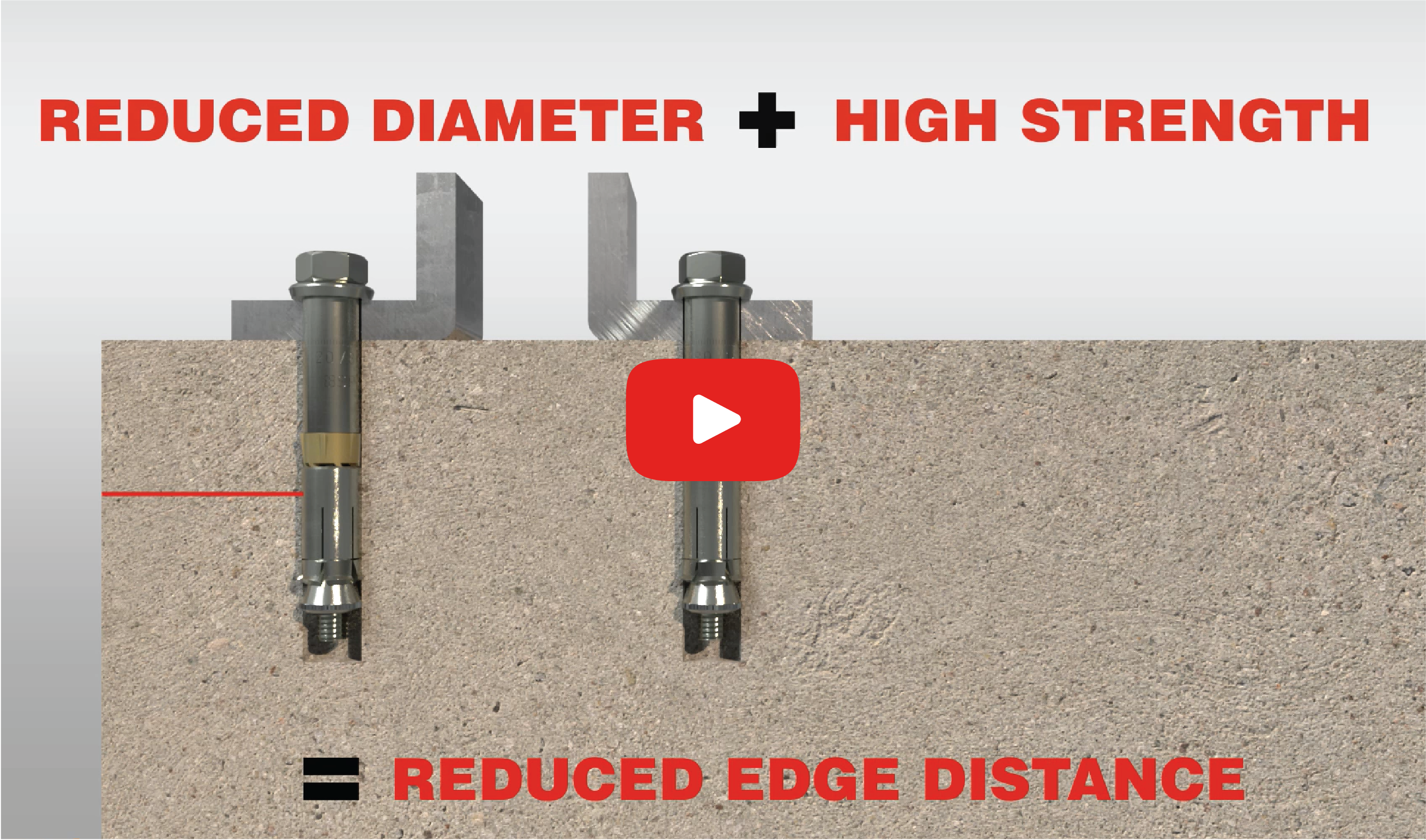

Modularity means... Versatility

See the highly versatile and extensive range of anchors that meet all application requirements...

Watch video

AnchorFix Image - 640 x 377.png


Anchor dimensioning made easy
Download free industry specialist software today, designed to make concrete anchor specification simple!


BLS Full Range - 640 x 377.png

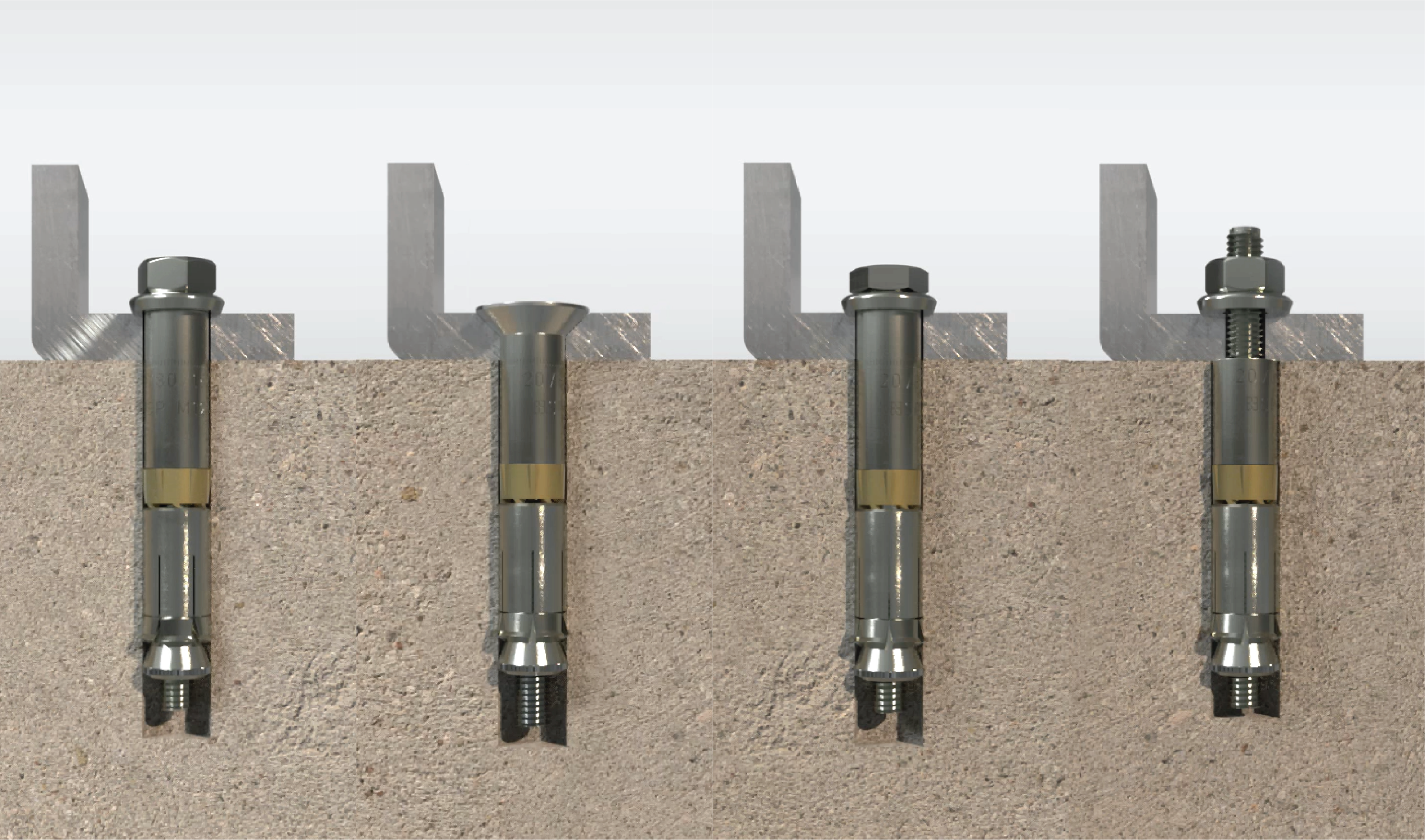

A versatile range...

For pre-installed application scenarios, the BLS-P has an extended threaded rod, designed to be used where the anchor is installed into the concrete and the baseplate is dropped over the top, prior to torque being applied.

The remaining Superplus BLS, SLS, SKLS and ILS variants, including the SKLS countersunk head option, provide a very simple push-through installation where drilling and anchor insertion can be made directly through the baseplate.

M8 Options also available - This smaller diameter version reduces embedment depth and therefore also lowers the risk of hitting rebar during installation.

BLS Tighten V2 - 640 x 377.png

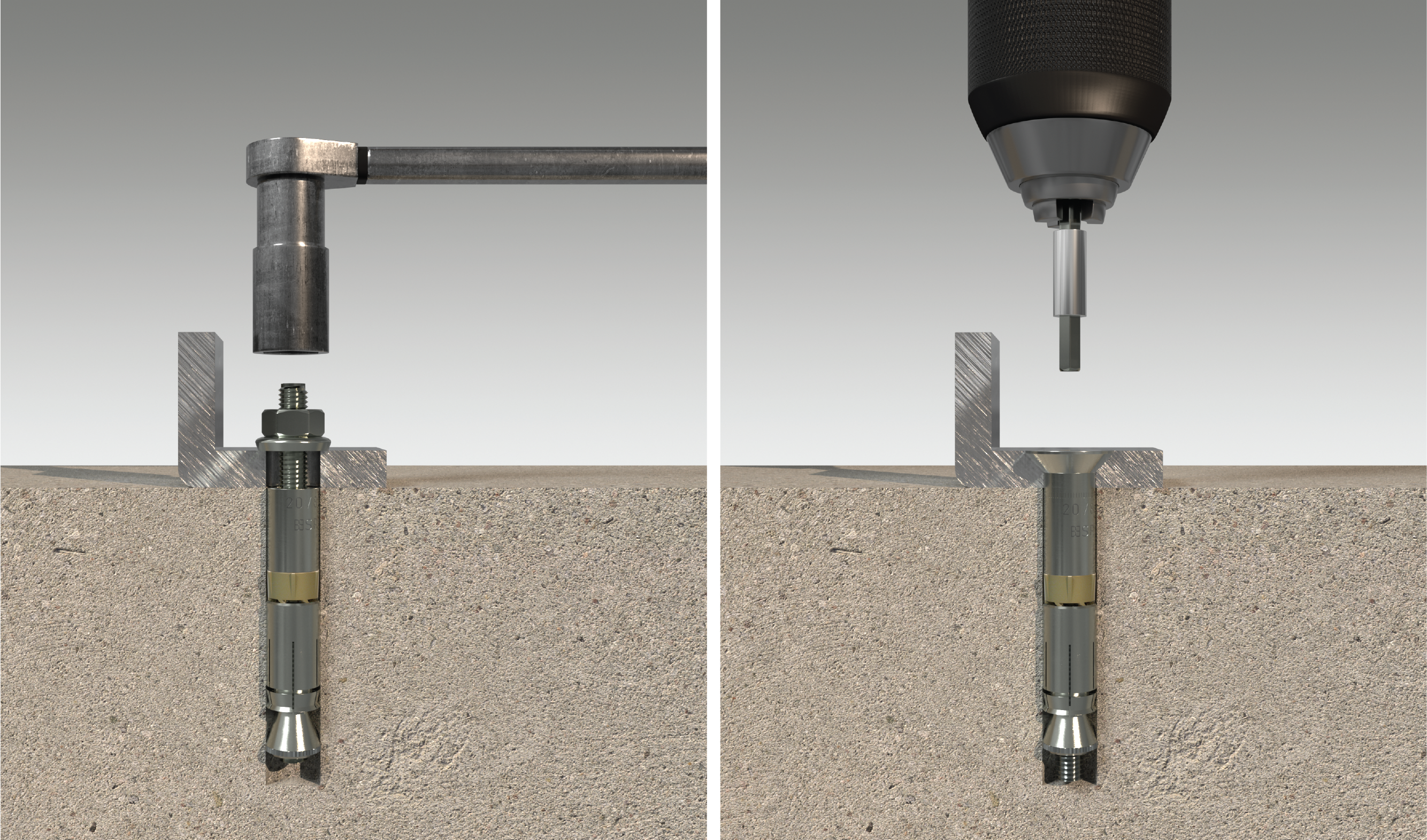

Torque Controlled Setting

Setting is a simple process when using a correctly set torque wrench. This method is used for the BLS (Stud with Nut), SLS (Hexagonal Bolt) and BLS-P (Extended Stud with Nut).

However, for the SKLS (Countersunk Screw) the process is slightly different due to the countersunk head but can be tightened with a hex drive bit.

BLS Applications - 640 x 377.png

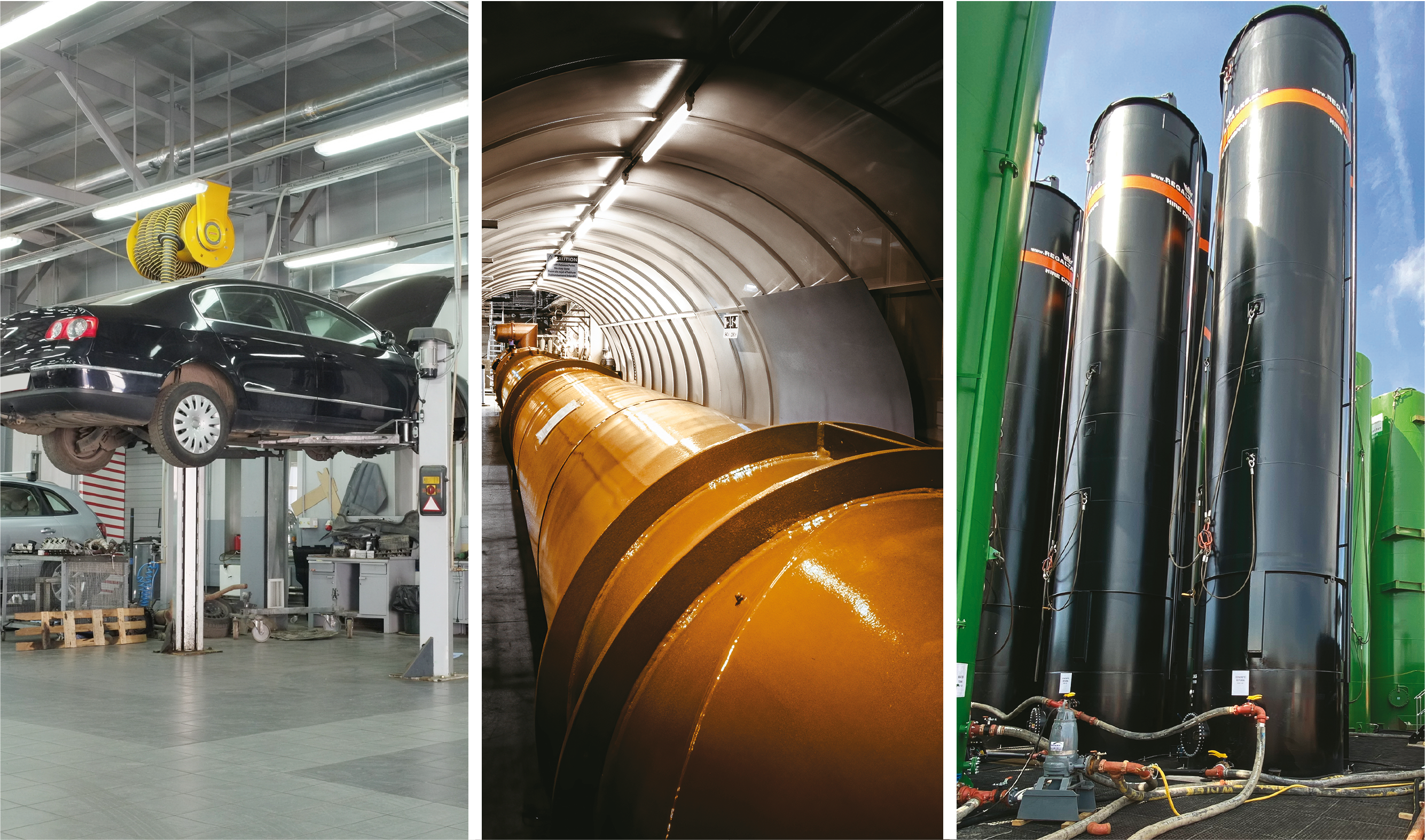

Typical Applications

The BLS has a huge range of application areas, such as:

  • Power plants (nuclear, hydroelectric & petrochemical)
  • Steel & industrial plants
  • Façades
  • Structural steel work
  • Base plates
  • Safety barriers & guide rails
  • Storage racking
  • Lifts & elevator variations
  • Cranes & crane runways
  • Tunnel ventilation & M&E
  • Plus much more...

LIEBIG BLS Brochure - 640 x 377.png

Brochure & Samples Available

EJOT UK has developed a specialist brochure specifically for our BLS range. You can request a copy below...

Alternatively, you can request a free sample box below. This box contains a BLS anchor, so you can see it up close for yourself...

LIEBIG Webshop - 640 x 377.png

See the entire Superplus range in our webshop...

  • BLS - Stud with Nut
  • BLS A4 - Stud with Nut
  • BLS-P - Extended Stud with Nut
  • SLS - Hexagonal Bolt
  • SKLS - Countersunk Screw
  • ILS - Internal Thread
  • SD - Lightning Protection

LIEBIG BLS UKTA V2 - 640 x 377.png

UKTA for LIEBIG Superplus BLS

The BLS range of self-undercutting heavy-duty anchors receives a UK Technical Assessment certification. This range also benefits from the ACI 355 Nuclear Performance Standard and ETA approval.
