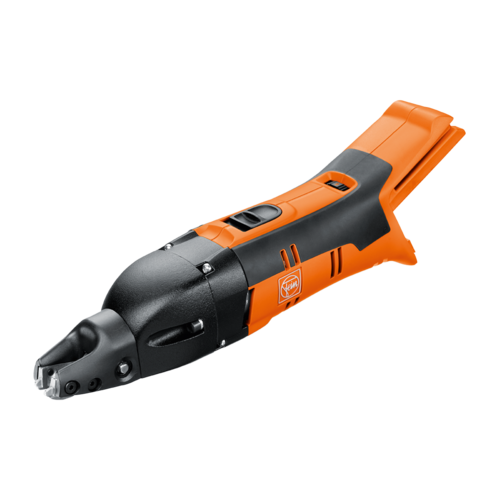

EJOT® ABBS 18 1.6 E Select
Specification
-
Applications
- Handy slitting shears, suitable for bends for metals and non-metals
-
Properties
- Fast work progress due to excellent view of the cut through open cutting head
- Left and right curved cut, as well as distortion-free cutting possible with just one continuous chip
- QuickIN quick-change system for fast, key-free blade change without adjustment
- Excellent ergonomics and low weight
- Motor with outstanding performance and service life
- Cutting blade with excellent service life
- Cutting capacity with one battery charge 120 m
- Clean swarf removal prevents scratching on the work piece and injuries
-
Technical specifications
- Battery voltage: 14.4V
- Stroke rate : 2 000 - 3 500 rpm
- Cutting speed: 5 - 8 m/min
- Steel up to 400 N/mm²: 1.6 mm
- Steel up to 600 N/mm²: 1.2 mm
- Steel up to 800 N/mm²: 0.8 mm
- Nonferrous metal up to 250 N/mm²: 2.0 mm
- Cutting width: 5.0 mm
- Radius of the smallest curve: 90 (30)¹ mm
- Imersion diameter: 15 (8)¹ mm

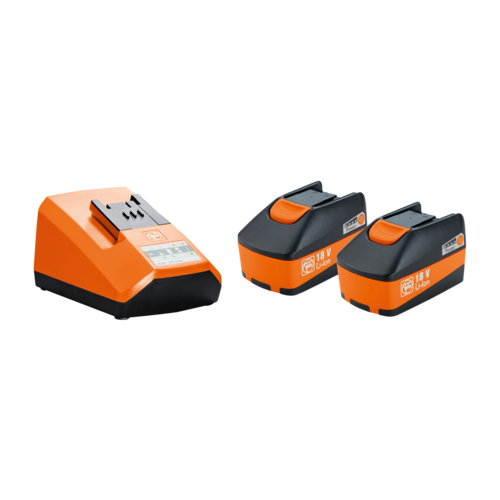

- Battery pack: X
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
| Orderidentifier | Article Number | Unit | Availability | * Price / | |
|---|---|---|---|---|---|
| Cutting dies | 9559966005 | ||||
