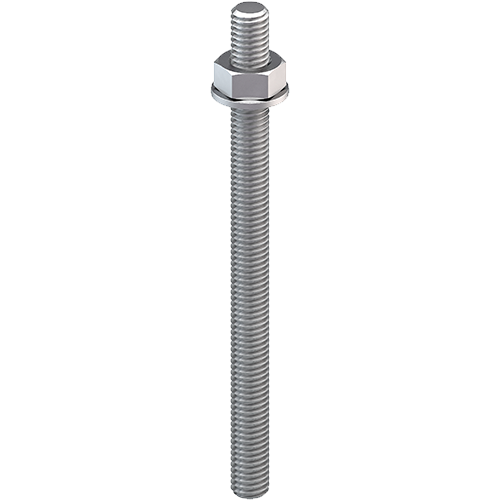

Anchor rod AST

Specification

Applications
- Clamp thickness applies to standard installation depth in concrete
Properties
- with nut and washer
- Steel quality 5.8 zinc-plated or A4 stainless steel
Note
NOTE: Please observe the corresponding approvals during planning and processing.

Orderidentifier	Article Number	Thread	Length mm	Clamp thickness mm	Material		Unit
AST M8x110-E	9571098110	M8	110.0	20.0	Stainless Steel	10.0	100
Specifications Thread M8 Length 110.0 Clamp thickness 20.0 Material Stainless Steel Thread diameter 10.0 Availability Orderidentifier AST M8x110-E Unit 100 * Price / 100
AST M10x130-E	9571910130	M10	130.0	30.0	Stainless Steel	12.0	100
Specifications Thread M10 Length 130.0 Clamp thickness 30.0 Material Stainless Steel Thread diameter 12.0 Availability Orderidentifier AST M10x130-E Unit 100 * Price / 100
AST M12x160-E	9571912160	M12	160.0	35.0	Stainless Steel	14.0	100
Specifications Thread M12 Length 160.0 Clamp thickness 35.0 Material Stainless Steel Thread diameter 14.0 Availability Orderidentifier AST M12x160-E Unit 100 * Price / 100
AST M16x190-E	9571916190	M16	190.0	45.0	Stainless Steel	18.0	100
Specifications Thread M16 Length 190.0 Clamp thickness 45.0 Material Stainless Steel Thread diameter 18.0 Availability Orderidentifier AST M16x190-E Unit 100 * Price / 100
