JF3 2 5.5
For fixing metal/plastic clips to profiled metal sheets or sandwich panels

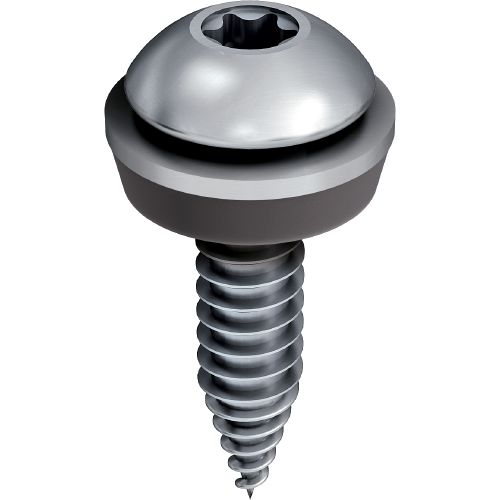

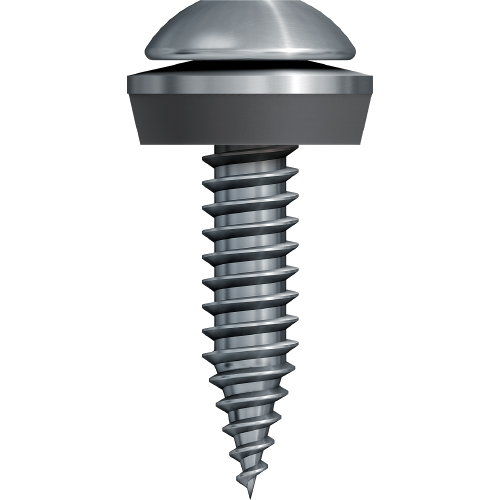

EJOT® JF3 FR 2 5.5 x 25
Specification
-
Applications
- For fixing metal / plastic clips to profiled metal sheets or sandwich panels
-
Properties
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Non-skid application
- Fastening without swarf
- Low profile dome head
- Can be used in conjunction with S12 stainless / EPDM vulcanised sealing washers
- Secondary fastener
-
Technical specifications
- Drive: Torx 25
- Stitching 2 x 0.5mm up to 2 x 1.0mm in thickness
- Material: A2 stainless steel with innovative point geometry
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Drive | Length mm | ø mm | Ø Sealing Washer mm | Clamp thickness mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|
| JF3 FR 2 5.5 x 25 | 7384196301 | TORX T25 | 25.0 | 5.5 | 0 - none | 0.5 - 10.0 | 100 | |||
| JF3 FR 2 5.5 x 25 S12 | 9900103670 | TORX T25 | 25.0 | 5.5 | 12 | 0.5 - 8.0 | 100 | |||
Delivery status:
- Stock
- No Stock
