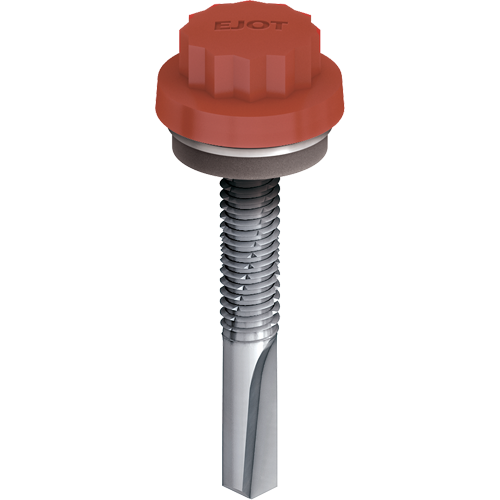

COLORFAST® CF15 JT3 12 5.5

Specification

  • Applications

    • Profiled roofing and cladding sheets to hot rolled steel sections
    • Aluminium roofing and cladding sheets to hot rolled steel section
  • Properties

    • Assembled with integral Nylon head and Aluminium/EPDM vulcanised sealing washer
  • Technical specifications

    • 11mm Bi-Hex Socket
    • Steel sections from 4.0 to 12.0mm in thickness
    • Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

Important: Colour resolution may vary depending on your personal screen settings. Remember to use BSC or RAL code for an exact match. Lead time on “available soon” Colorfast Fasteners is approximately 3-5 working days. Other colours are available, please email salesuk@ejot.com or call 01977 687040 for further information

* To see prices,  please log in here.

Filter

Select system

  • BSC
    Select unit
    • Albatross BSC - 18-B-17
    • Black BSC 00-E-53
    • Goosewing Grey BCS 10-A-05
    • Juniper BSC 12-B-29
    • Merlin Grey BSC 18-B-25
    • Moorland Green BSC 12-B-21
    • Ocean Blue BSC 18-C-39
    • Olive Green BSC 12-B-27
    • Solent Blue BSC4800 18E53
    • Van Dyke Brown BSC 09-B-29
    • White BSC 00-E-55
  • RAL
    Select unit
    • RAL080 70 10
    • RAL5003
    • RAL7012
    • RAL7016
    • RAL7037
    • RAL9006
    • RAL9007
    • RAL9010

Selected filters

    Orderidentifier Article Number Length mm ø mm Head Colour Ø CF Sealing Washer Clamp thickness mm Unit Availability * Price / 100
    CF15 JT3 12 5.5 x 40 Goosewing Grey BSC 10-A-05 7554015049 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    Goosewing Grey BCS 10-A-05
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Goosewing Grey BSC 10-A-05
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Metallic Silver RAL 9006 7554015084 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    RAL9006
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Metallic Silver RAL 9006
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3-12-5.5 x 40 Pure White RAL 9010 7554015085 40.0 5.5 15 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    RAL9010
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3-12-5.5 x 40 Pure White RAL 9010
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Basalt Grey RAL 7012 7554015224 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    RAL7012
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Basalt Grey RAL 7012
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Olive Green BSC 12-B-27 7554015227 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    Olive Green BSC 12-B-27
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Olive Green BSC 12-B-27
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 White BSC 00-E-55 7554015265 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    White BSC 00-E-55
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 White BSC 00-E-55
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Merlin Grey BSC 18-B-25 7554015825 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    Merlin Grey BSC 18-B-25
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Merlin Grey BSC 18-B-25
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Ocean Blue BSC 18-C-39 7554015839 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    Ocean Blue BSC 18-C-39
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Ocean Blue BSC 18-C-39
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Albatross BSC 18-B-17 9900000014 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    Albatross BSC - 18-B-17
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Albatross BSC 18-B-17
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF15 JT3 12 5.5 x 40 Grey Aluminium RAL 9007 9900060536 40.0 5.5 15 4.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    40.0
    ø
    5.5
    Head Colour
    RAL9007
    Ø CF Sealing Washer
    15
    Clamp thickness
    4.0 - 10.0
    Maximum drilling capacity
    12.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF15 JT3 12 5.5 x 40 Grey Aluminium RAL 9007
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
