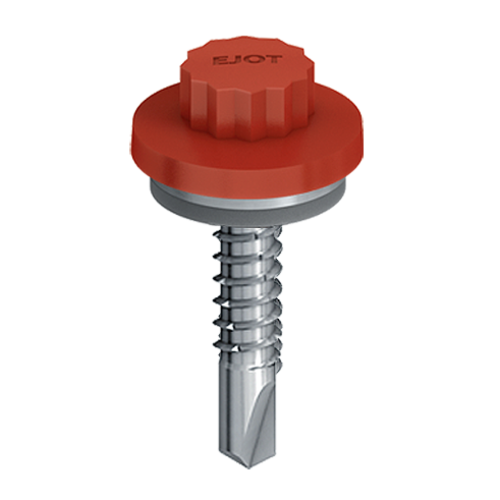

COLORFAST® CF19 JT3 6 5.5

Specification

  • Applications

    • Profiled roofing and cladding sheets to medium steel sections
    • Aluminium roofing and cladding sheets to medium steel sections
  • Properties

    • A2 Austenitic Stainless Steel fastener with Carbon steel drill point
    • Assembled with integral Nylon head and Aluminium/EPDM vulcanised sealing washer
  • Technical specifications

    • 11mm Bi-Hex Socket
    • Steel sections from 1.2 to 6.0mm in thickness

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

Important: Colour resolution may vary depending on your personal screen settings. Remember to use BSC or RAL code for an exact match. Lead time on “available soon” Colorfast Fasteners is approximately 3-5 working days. Other colours are available, please email salesuk@ejot.com or call 01977 687040 for further information

* To see prices,  please log in here.

Filter

Select system

  • BSC
    Select unit
    • Albatross BSC - 18-B-17
    • Goosewing Grey BCS 10-A-05
    • Merlin Grey BSC 18-B-25
    • Olive Green BSC 12-B-27
    • Van Dyke Brown BSC 09-B-29
    • White BSC 00-E-55
  • RAL
    Select unit
    • RAL7016
    • RAL9006

Selected filters

    Orderidentifier Article Number Length mm ø mm Head Colour Ø CF Sealing Washer Clamp thickness mm Unit Availability * Price / 100
    CF19 JT3-6-5.5 x 25 Albatross BSC 18-B-17 7552815817 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Albatross BSC - 18-B-17
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3-6-5.5 x 25 Albatross BSC 18-B-17
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 25 Goosewing Grey BSC 10-A-05 9900060052 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Goosewing Grey BCS 10-A-05
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 25 Goosewing Grey BSC 10-A-05
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 25 White BSC 00-E-55 9900101340 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    White BSC 00-E-55
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 25 White BSC 00-E-55
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3-6-5.5 x 25 Anthracite Grey RAL 7016 9900101697 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    RAL7016
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3-6-5.5 x 25 Anthracite Grey RAL 7016
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 25 Merlin Grey BSC 18-B-25 9900101728 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Merlin Grey BSC 18-B-25
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 25 Merlin Grey BSC 18-B-25
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 25 Metallic Silver RAL 9006 9900103557 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    RAL9006
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 25 Metallic Silver RAL 9006
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 25 Van Dyke Brown BSC 08-B-29 9900104732 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Van Dyke Brown BSC 09-B-29
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 25 Van Dyke Brown BSC 08-B-29
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 25 Olive Green BSC 12-B-27 9900104733 25.0 5.5 19 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Olive Green BSC 12-B-27
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 25 Olive Green BSC 12-B-27
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 30 Goosewing Grey BSC 10-A-05 9900060457 30.0 5.5 19 2.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    30.0
    ø
    5.5
    Head Colour
    Goosewing Grey BCS 10-A-05
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 10.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 30 Goosewing Grey BSC 10-A-05
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 JT3 6 5.5 x 30 Metallic Silver RAL 9006 9900103754 30.0 5.5 19 2.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    30.0
    ø
    5.5
    Head Colour
    RAL9006
    Ø CF Sealing Washer
    19
    Clamp thickness
    2.0 - 10.0
    Maximum drilling capacity
    6.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 JT3 6 5.5 x 30 Metallic Silver RAL 9006
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
