Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

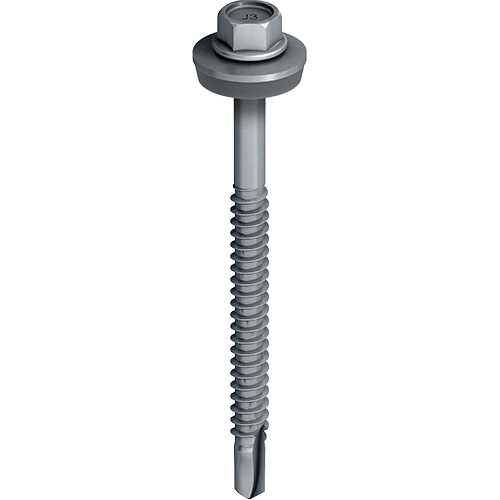

EJOT® JT3 6 5.5
Specification
-
Applications
- Profiled / Aluminium roofing and cladding sheets to medium steel sections
-
Properties
- Available unwashered
- Can be used in conjunction with S16 and S19 stainless/ EPDM and A29 aluminium vulcanised sealing washers
-
Technical specifications
- Drive: 8mm clip hex one piece socket
- Steel sections from 1.2 to 6.0mm in thickness
- Material; A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Ø Sealing Washer mm | Head Colour | Unit | Availability | * Price / 100 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JT3 6 5.5 x 25 | 7380306301 | 25.0 | 5.5 | 0 - none | 2.0 - 9.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3-6-5,5x25 E16 RAL 9002 | 3532211682 | 25.0 | 5.5 | 16 | 0.0 - 7.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 25 S16 | 3572211361 | 25.0 | 5.5 | 16 | 0.0 - 7.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 25 S19 | 3572212361 | 25.0 | 5.5 | 19 | 0.0 - 7.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 25 S22 | 3572213361 | 25.0 | 5.5 | 22 | 0.0 - 7.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 30 | 7380307301 | 30.0 | 5.5 | 0 - none | 2.0 - 14.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 30 S16 | 3572311361 | 30.0 | 5.5 | 16 | 0.0 - 11.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3-6-5.5x30-E16 PU100 | 6572311361 | 30.0 | 5.5 | 16 | 0.0 - 11.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 30 S19 | 3572312361 | 30.0 | 5.5 | 19 | 0.0 - 11.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 30 A29 | 9900103411 | 30.0 | 5.5 | 29 | 2.0 - 11.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 35 | 7380308301 | 35.0 | 5.5 | 0 - none | 2.0 - 19.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 35 S16 | 3572511361 | 35.0 | 5.5 | 16 | 0.0 - 16.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3-6-5.5x35-E16 PU100 | 6572511361 | 35.0 | 5.5 | 16 | 0.0 - 16.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 35 S19 | 3572512361 | 35.0 | 5.5 | 19 | 0.0 - 16.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 35 S19 | 9900107002 | 35.0 | 5.5 | 19 | 2.0 - 17.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 35 S22 | 3572513361 | 35.0 | 5.5 | 22 | 0.0 - 16.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 50 | 7380309301 | 50.0 | 5.5 | 0 - none | 2.0 - 34.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 50 S16 | 3592811361 | 50.0 | 5.5 | 16 | 0.0 - 31.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 50 S19 | 3592812361 | 50.0 | 5.5 | 19 | 0.0 - 31.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 50 S19 | 9900101128 | 50.0 | 5.5 | 19 | 2.0 - 32.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 50 A29 | 9900102506 | 50.0 | 5.5 | 29 | 2.0 - 31.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 70 | 7380383301 | 70.0 | 5.5 | 0 - none | 22.0 - 54.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 70 S16 | 3593911361 | 70.0 | 5.5 | 16 | 22.0 - 51.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3-6-5.5x70-E16 PU100 | 6593911361 | 70.0 | 5.5 | 16 | 22.0 - 51.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 70 S19 | 3593912361 | 70.0 | 5.5 | 19 | 22.0 - 51.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 70 A29 | 9900101913 | 70.0 | 5.5 | 29 | 22.0 - 51.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 90 | 7380384301 | 90.0 | 5.5 | 0 - none | 42.0 - 74.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 90 S16 | 3596111361 | 90.0 | 5.5 | 16 | 42.0 - 71.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 90 S19 | 3596112361 | 90.0 | 5.5 | 19 | 42.0 - 71.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5. 5 x 90 S22 | 3596113361 | 90.0 | 5.5 | 22 | 42.0 - 71.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 90 A29 | 9900103401 | 90.0 | 5.5 | 29 | 42.0 - 71.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 110 | 7380385301 | 110.0 | 5.5 | 0 - none | 62.0 - 94.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 110 S16 | 3596211361 | 110.0 | 5.5 | 16 | 62.0 - 91.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 110 S19 | 3596212361 | 110.0 | 5.5 | 19 | 62.0 - 91.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 110 S22 | 3596213361 | 110.0 | 5.5 | 22 | 62.0 - 91.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 110 A29 | 9900103473 | 110.0 | 5.5 | 29 | 62.0 - 91.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 130 | 7380386301 | 130.0 | 5.5 | 0 - none | 82.0 - 104.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 130 S16 | 3596311361 | 130.0 | 5.5 | 16 | 82.0 - 111.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 130 S16 | 9900000210 | 130.0 | 5.5 | 16 | 82.0 - 102.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 130 S19 | 3596312361 | 130.0 | 5.5 | 19 | 82.0 - 111.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 130 S22 | 3596313361 | 130.0 | 5.5 | 22 | 82.0 - 111.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 130 A29 | 9900103474 | 130.0 | 5.5 | 29 | 82.0 - 101.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 150 | 7380548301 | 150.0 | 5.5 | 0 - none | 102.0 - 124.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 150 S16 | 3596411361 | 150.0 | 5.5 | 16 | 102.0 - 131.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 150 S16 | 9900030387 | 150.0 | 5.5 | 16 | 102.0 - 122.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 150 S19 | 9900102499 | 150.0 | 5.5 | 19 | 102.0 - 122.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 150 S22 | 3596413361 | 150.0 | 5.5 | 22 | 102.0 - 131.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 150 A29 | 9900103475 | 150.0 | 5.5 | 29 | 102.0 - 121.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 170 | 7380549301 | 170.0 | 5.5 | 0 - none | 122.0 - 144.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 170 S16 | 3596511361 | 170.0 | 5.5 | 16 | 122.0 - 151.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 170 S19 | 3596512361 | 170.0 | 5.5 | 19 | 122.0 - 151.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 170 S22 | 3596513361 | 170.0 | 5.5 | 22 | 122.0 - 151.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 170 A29 | 9900103476 | 170.0 | 5.5 | 29 | 122.0 - 141.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 190 | 7380550301 | 190.0 | 5.5 | 0 - none | 142.0 - 164.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 190 S16 | 3596611361 | 190.0 | 5.5 | 16 | 142.0 - 171.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| 3596666361 | 190.0 | 5.5 | 19 | 142.0 - 171.0 | 6.0 | Hexagon 8mm AF | ||||||
| JT3 6 5.5 x 190 S19 | 9900030338 | 190.0 | 5.5 | 19 | 142.0 - 162.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
| JT3 6 5.5 x 190 S22 | 3596613361 | 190.0 | 5.5 | 22 | 142.0 - 171.0 | 6.0 | Hexagon 8mm AF | |||||
| JT3 6 5.5 x 190 A29 | 9900103477 | 190.0 | 5.5 | 29 | 142.0 - 161.0 | 6.0 | Hexagon 8mm AF | 100 | ||||
