CF15 JT6 D6H 5.5/6.3
For steel profiled insulated sandwich panels to steel sections/timber

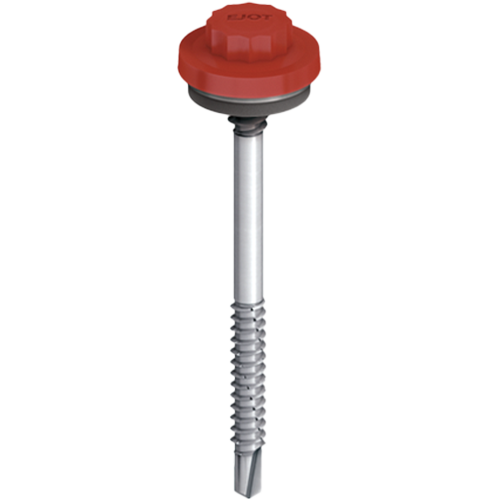

COLORFAST® CF19 JT6 D6H
Specification
-
Applications
- Steel profiled insulated sandwich panels to light to medium steel sections.
- Steel profiled insulated sandwich panels to timber sections 45-50mm embedment.
-
Properties
- A4 Austenitic stainless steel fastener with carbon steel drill point.
- Assembled with integral nylon head and aluminium/EPDM vulcanised sealing washer.
-
Technical specifications
- 11mm Bi-Hex socket.
- Steel sections from 1.2mm to 6.0mm.
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Select system
-
BSC
Select color
- Albatross BSC - 18-B-17
- Goosewing Grey BCS 10-A-05
- Poppy Red BSC 04-E-53
Selected filters
| Orderidentifier | Article Number | Length mm | Ø CF Sealing Washer | Head Colour | Clamp thickness mm | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CF19 JT6-D6H-5.5/6.3 x 107 Albatross BSC 18-B-17 | 9900107548 | 107.0 | 19 | 52.0 - 86.0 | 6.0 | 100 | ||||
| CF19 JT6-D6H-5.5/6.3 x 127 Goosewing Grey BSC 10-A-05 | 9900106918 | 127.0 | 19 | 72.0 - 106.0 | 6.0 | 100 | ||||
| CF19 JT6-D6H-5.5/6.3 x 147 Poppy Red BSC 04-E-53 | 9900107440 | 147.0 | 19 | 92.0 - 126.0 | 6.0 | 100 | ||||
| CF19 JT6-D6H-5.5/6.3 x 167 Goosewing Grey BSC 10-A-05 | 9900108069 | 167.0 | 19 | 112.0 - 146.0 | 6.0 | 100 | ||||
| CF19 JT6-D6H-5.5/6.3 x 197 Goosewing Grey BSC 10-A-05 | 9900108932 | 197.0 | 19 | 142.0 - 176.0 | 6.0 | 100 | ||||
| CF19 JT6-D6H-5.5/6.3 x 237 Goosewing Grey BSC 10-A-05 | 9900108933 | 237.0 | 19 | 172.0 - 216.0 | 6.0 | 100 | ||||
