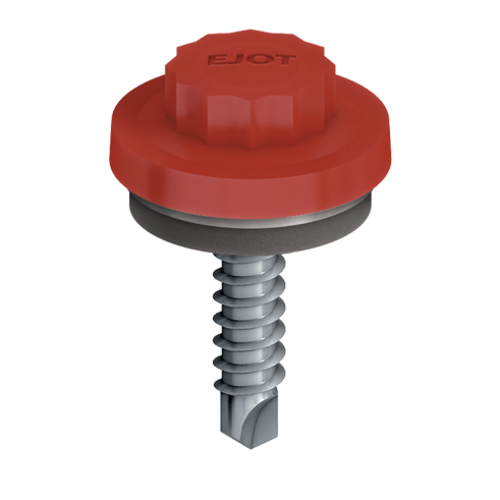

COLORFAST® CF19 LS 5.5

Specification

  • Applications

    • Profiled roofing and cladding sheets to light steel section
  • Properties

    • Carbon Steel with organic corrosion resistant finish
    • Assembled with integral Nylon head and Aluminium/EPDM vulcanised sealing washer
  • Technical specifications

    • 11mm Bi-Hex Socket
    • Steel sections from 1.2 to 3.0mm in thickness

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

Important: Colour resolution may vary depending on your personal screen settings. Remember to use BSC or RAL code for an exact match. Lead time on “available soon” Colorfast Fasteners is approximately 3-5 working days. Other colours are available, please email salesuk@ejot.com or call 01977 687040 for further information

* To see prices,  please log in here.

Filter

Select system

  • BSC
    Select unit
    • Albatross BSC - 18-B-17
    • Black BSC 00-E-53
    • Goosewing Grey BCS 10-A-05
    • Juniper BSC 12-B-29
    • Merlin Grey BSC 18-B-25
    • Moorland Green BSC 12-B-21
    • Ocean Blue BSC 18-C-39
    • Olive Green BSC 12-B-27
    • Solent Blue BSC4800 18E53
    • Terracotta BSC 04-C-39
    • Van Dyke Brown BSC 09-B-29
    • White BSC 00-E-55
  • RAL
    Select unit
    • RAL100 60 20
    • RAL7012
    • RAL7016
    • RAL7035
    • RAL9006

Selected filters

    Orderidentifier Article Number Length mm ø mm Head Colour Ø CF Sealing Washer Clamp thickness mm Unit Availability * Price / 100
    CF19 LS 5.5 x 25 Ocean Blue BSC 18-C-39 5202519006 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Ocean Blue BSC 18-C-39
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Ocean Blue BSC 18-C-39
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Moorland Green BSC 12-B-21 5202519009 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Moorland Green BSC 12-B-21
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Moorland Green BSC 12-B-21
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Merlin Grey BSC 18-B-25 5202519019 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Merlin Grey BSC 18-B-25
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Merlin Grey BSC 18-B-25
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Juniper BSC 12-B-29 5202519034 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Juniper BSC 12-B-29
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Juniper BSC 12-B-29
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Goosewing Grey BSC 10-A-05 5202519049 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Goosewing Grey BCS 10-A-05
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Goosewing Grey BSC 10-A-05
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Black BSC 00-E-53 5202519053 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Black BSC 00-E-53
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Black BSC 00-E-53
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Van Dyke Brown BSC 08-B-29 5202519079 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Van Dyke Brown BSC 09-B-29
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Van Dyke Brown BSC 08-B-29
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Metallic Silver RAL9006 5202519084 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    RAL9006
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Metallic Silver RAL9006
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 Olive Green BSC 12-B-27 5202519227 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    Olive Green BSC 12-B-27
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 Olive Green BSC 12-B-27
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    CF19 LS 5.5 x 25 White BSC 00-E-55 5202519265 25.0 5.5 19 1.2 - 4.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    25.0
    ø
    5.5
    Head Colour
    White BSC 00-E-55
    Ø CF Sealing Washer
    19
    Clamp thickness
    1.2 - 4.0
    Maximum drilling capacity
    3.0
    Drive
    11mm Bi Hex
    Availability
    Orderidentifier
    CF19 LS 5.5 x 25 White BSC 00-E-55
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
