Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

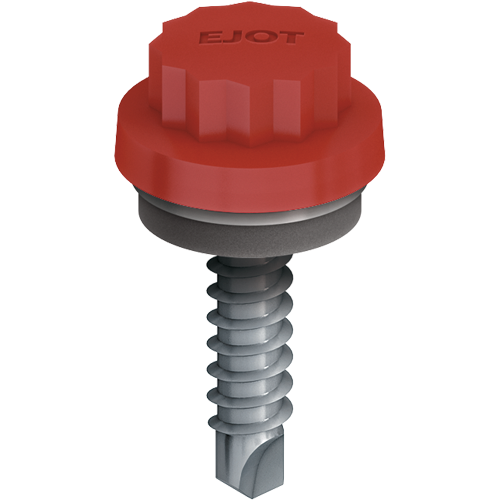

COLORFAST® CF15 LS 5.5
Specification
-
Applications
- Profiled roofing and cladding sheets to light steel
-
Properties
- Assembled with integral Nylon head and Aluminium/EPDM vulcanised sealing washer
-
Technical specifications
- 11mm Bi-Hex Socket
- Steel sections from 1.2 to 3.0mm in thickness
- Material: Carbon Steel with an organic corrosion resistant finish
- Washer ⌀: 15mm
- Note: This product is available with a 19mm washer (CF19 LS 5.5) or a 29mm washer (CF29 LS 5.5)
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Select system
-
BSC
Select unit
- Albatross BSC - 18-B-17
- Black BSC 00-E-53
- Goosewing Grey BCS 10-A-05
- Juniper BSC 12-B-29
- Merlin Grey BSC 18-B-25
- Moorland Green BSC 12-B-21
- Ocean Blue BSC 18-C-39
- Olive Green BSC 12-B-27
- Solent Blue BSC4800 18E53
- Terracotta BSC 04-C-39
- Van Dyke Brown BSC 09-B-29
- Wedgewood BSC 18-C-37
- White BSC 00-E-55
-
RAL
Select unit
- RAL080 70 10
- RAL5003
- RAL7012
- RAL7016
- RAL7035
- RAL7037
- RAL9006
- RAL9007
- RAL9010
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Ø CF Sealing Washer | Head Colour | Clamp thickness mm | Unit | Availability | * Price / 100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CF15 LS 5.5 x 25 Ocean Blue BSC 18-C-39 | 5202515006 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Moorland Green BSC 12-B-21 | 5202515009 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Solent Blue BSC 18-E-53 | 5202515010 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Terracotta BSC 04-C-39 | 5202515015 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Wedgewood BSC 18-C-37 | 5202515017 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Merlin Grey BSC 18-B-25 | 5202515019 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Mushroom BSC 10-B-19 | 5202515021 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Anthracite Grey RAL 7016 | 5202515025 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Juniper BSC 12-B-29 | 5202515034 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Goosewing Grey BSC 10-A-05 | 5202515049 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Olive Green BSC 12-B-27 | 5202515064 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS LS 5.5 x 25 Oyster RAL 7035 | 5202515075 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS LS 5.5 x 25 Van Dyke Brown BSC 08-B-29 | 5202515079 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS LS 5.5 x 25 Black BSC 00-E-53 | 5202515083 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Metallic Silver RAL 9006 | 5202515084 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Pure White RAL 9010 | 5202515085 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Grey Aluminium RAL 9007 | 5202515220 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Basalt Grey RAL 7012 | 5202515224 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Sargasso RAL 5003 | 5202515226 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 25 Albatross BSC 18-B-17 | 5202515298 | 25.0 | 5.5 | 15 | 1.2 - 4.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Goosewing Grey BSC 10-A-05 | 5203215049 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Black BSC 00-E-53 | 5203215053 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Van Dyke Brown BSC 08-B-29 | 5203215079 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Albatross BSC 18-B-17 | 5203215298 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Anthracite Grey RAL 7016 | 9900060589 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Basalt Grey RAL 7012 | 9900100326 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 32 Juniper BSC 12-B-29 | 9900101368 | 32.0 | 5.5 | 15 | 1.2 - 9.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Anthracite Grey RAL 7016 | 5203815025 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Metallic Silver RAL 9006 | 5203815084 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 White BSC 00-E-55 | 5203815265 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Merlin Grey BSC 18-B-25 | 5203815825 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Olive Green BSC 12-B-27 | 9900100272 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Dusty Grey RAL 7037 | 9900102006 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Mushroom BSC 10-B-19 | 9900102121 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Black BSC 00-E-53 | 9900103136 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Sargasso RAL 5003 | 9900103944 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 38 Van Dyke Brown BSC 08-B-29 | 9900104785 | 38.0 | 5.5 | 15 | 1.2 - 12.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Merlin Grey BSC 18-B-25 | 5205015019 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Black BSC 00-E-53 | 5205015083 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Metallic Silver RAL 9006 | 5205015084 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Basalt Grey RAL7012 | 5205015224 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 White BSC 00-E-55 | 5205015265 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Albatross BSC 18-B-17 | 5205015817 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Van Dyke Brown BSC 08-B-29 | 5205015829 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Ocean Blue BSC 18-C-39 | 5205015839 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Mushroom BSC 10-B-19 | 9900102421 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Anthracite Grey RAL 7016 | 9900102531 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Dusty Grey RAL 7037 | 9900103533 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 50 Juniper BSC 12-B-29 | 9900104786 | 50.0 | 5.5 | 15 | 1.2 - 33.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Metallic Silver RAL 9006 | 5207015084 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Merlin Grey BSC 18-B-25 | 5207015825 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Goosewing Grey BSC 10-A-05 | 9900060080 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 White BSC 00-E-55 | 9900060250 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Black BSC 00-E-53 | 9900101785 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Moorland Green BSC 12-B-21 | 9900103308 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Juniper BSC 12-B-29 | 9900104787 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Anthracite Grey RAL 7016 | 9900104788 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Dusty Grey RAL 7037 | 9900104789 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Oyster RAL 7035 | 9900104790 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Mushroom BSC 10-B-19 | 9900104791 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
| CF15 LS 5.5 x 70 Grey Aluminium RAL9007 | 9900104792 | 70.0 | 5.5 | 15 | 1.2 - 53.0 | 3.0 | 11mm Bi Hex | 100 | ||||
