ejotherm® STR-tool 2GE

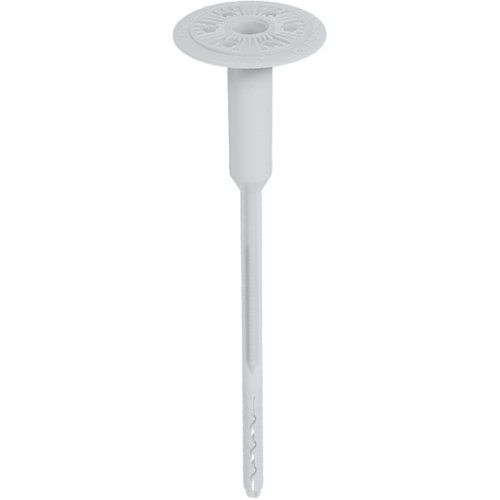

For countersunk installation of ejotherm STR U 2G
Anchor diameter: 8 mm
Washer diameter: 60 mm
Drill hole depth, countersunk installation h1 ≥: 50 mm (90 mm)
Drill hole depth, surface fixed installation h2 ≥: 35 mm (75 mm)
Anchorage depth hef≥: 25 mm (65 mm)
Screw drive: TX30
Point thermal transmission χ
Countersunk installation: 0,001 W/K
Surface fixed installation: 0,002 W/K
Use categories acc. to ETA*: A, B, C, D, E
German DIBt approval: Z-21.2-1769
European Technical Approval: ETA-04/0023
Values in parentheses: anchoring in aerated concrete (use category E)
*Specification according to ÖNORM B 6124 for concrete, solid brick and vertical brick
Characteristic Loads:
Building material class A:
Normal weight concrete C 12/15 acc. to EN 206-1: 1.5 kN
Normal weight concrete C 16/20 - C 50/60 acc. to EN 206-1: 1.5 kN
Pre-cast concrete panel C16/20 - C50/60: 1.5 kN
Building material class B:
Clay bricks (Mz) acc. to DIN 105: 1.5 kN
Solid lime sandstone (KS) acc. to DIN EN 106: 1.5 kN
Solid masonry of lightweight concrete (V) acc. to DIN 18152: 0.6 kN
Building material class C:
Vertically perforated clay bricks (Hlz) acc. to 105: 1.2 kN
Vertical coring reference bricks (Hlz) acc. to ÖNORM B 6124: 0.75 kN
Sand-lime perforated (KSL) acc. to EN 106: 1.5 kN
Lightweight concrete hollow blocks (HbL)acc. to DIN 18151: 0.6 kN
Building material class D:
Lightweight aggregate concrete (LAC): 0.9 kN
Building material class E:
Autoclaved aerated concrete P2 - P7: 0.75 kN
For calculation of design loads the national safety factors have to be included (e.g. Germany: 3). Please observe the approval.
ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.
Orderidentifier | Article Number | Washer diameter mm | Anchor diameter mm | Length mm | Substrate Categories | Unit | ||||
---|---|---|---|---|---|---|---|---|---|---|
ejotherm STR U 2G 115 | 8719115400 | 60.0 | 8.0 | 115.0 | A-D | countersank and surface fixed installation | 3.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
ejotherm STR U 2G 135 | 8719135400 | 60.0 | 8.0 | 135.0 | A-E | countersank and surface fixed installation, surface fixed installation only | 10.0, 30.0, 50.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
ejotherm STR U 2G 155 | 8719155400 | 60.0 | 8.0 | 155.0 | A-E | countersank and surface fixed installation, surface fixed installation only | 10.0, 30.0, 50.0, 70.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719175400 | 60.0 | 8.0 | 175.0 | A-E | countersank and surface fixed installation, surface fixed installation only | 10.0, 30.0, 70.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719195400 | 60.0 | 8.0 | 195.0 | A-E | surface fixed installation only, countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719215400 | 60.0 | 8.0 | 215.0 | A-E | surface fixed installation only, countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719235400 | 60.0 | 8.0 | 235.0 | countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0, 110.0 | screw-in-anchor | Carbon Steel | 100 | |
Specifications
|
||||||||||
|
8719255400 | 60.0 | 8.0 | 255.0 | countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0, 110.0 | screw-in-anchor | Carbon Steel | 100 | |
Specifications
|
||||||||||
|
8719275400 | 60.0 | 8.0 | 275.0 | A-E | surface fixed installation only, countersank and surface fixed installation | 90.0, 110.0, 70.0, 50.0, 30.0, 10.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719295400 | 60.0 | 8.0 | 295.0 | A-E | surface fixed installation only, countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0, 110.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719315400 | 60.0 | 8.0 | 315.0 | A-E | surface fixed installation only, countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0, 110.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719335400 | 60.0 | 8.0 | 335.0 | A-E | countersank and surface fixed installation | 10.0, 30.0, 50.0, 70.0, 90.0, 110.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719375400 | 60.0 | 8.0 | 375.0 | A-E | countersank and surface fixed installation | 90.0, 110.0, 70.0, 50.0, 30.0, 10.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719395400 | 60.0 | 8.0 | 395.0 | A-E | countersank and surface fixed installation | 50.0, 110.0, 90.0, 70.0, 10.0, 30.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719415400 | 60.0 | 8.0 | 415.0 | A-E | countersank and surface fixed installation | 110.0, 10.0, 70.0, 90.0, 50.0, 30.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719435400 | 60.0 | 8.0 | 435.0 | A-E | countersank and surface fixed installation | 30.0, 90.0, 50.0, 70.0, 10.0, 110.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
||||||||||
|
8719455400 | 60.0 | 8.0 | 455.0 | A-E | countersank and surface fixed installation | 50.0, 70.0, 90.0, 10.0, 30.0, 110.0 | screw-in-anchor | Carbon Steel | 100 |
Specifications
|
