ejotherm® STR U 2G
For countersunk and surface fixed installation in concrete and masonry

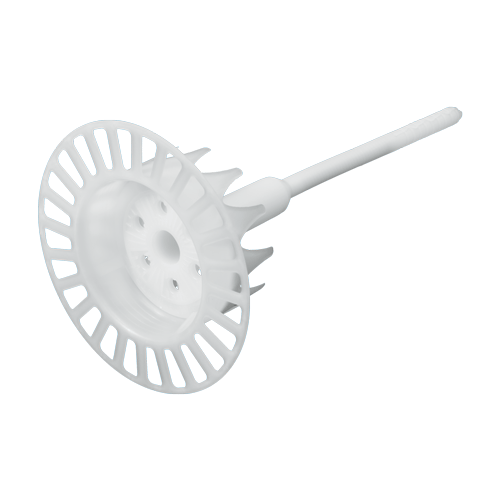

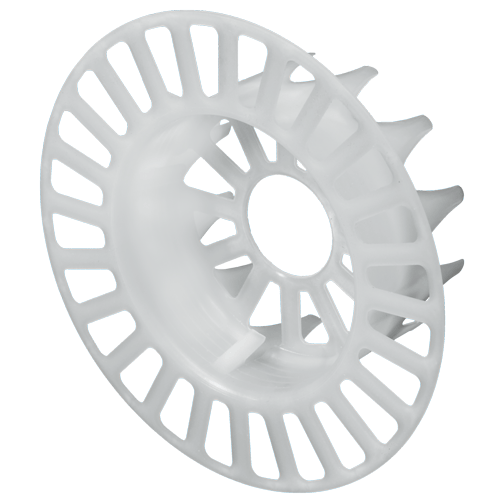

EJOT® ejotherm® VT 2G
Specification
-
Applications
- Specifically matched combination washer for ejotherm STR U 2G for countersunk installation into all mineral wool insulation boards WAP-zg (type WV)
- ejotherm VT 2G continues to promote the countersunk installation acc. to STR principle in all mineral wool insulation boards with a low tensil strength WAP-zg (type WV)
- For homogeneous surfaces and even rendering
- With European Technical Approval (ETA)
-
Properties
- Low point thermal transmission (Chi value 0.001 W/K)
- Reduced anchor marks
- No additional tool required
- Permanent contact pressure
- Anchor locates easily in the washer with a firm "click"
- 100% setting control
-
Technical specifications
- Washer diameter: 110 mm
- German DIBt approval: Z-21.2-1769
- European Technical Approval: ETA-04-0023
The quantity of anchors can be found in the mineral wool approvals for washers ≥90 mm.
Additional information
ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.
| Orderidentifier | Article Number | Washer diameter mm | Unit |
|---|---|---|---|
| ejotherm VT 2G | 8782090008 | 110.0 | 100 |
