EJOT® Iso-Bar ECO
Specification
-
Applications

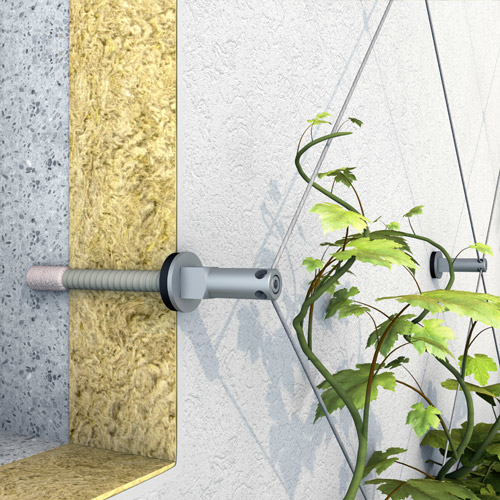

The EJOT Iso-Bar ECO is a thermally separated fastening element for subsequent and therefore flexible fastening on thermally insulated facades. The reinforced glass fibre plastic provides a minimal thermal bridge effect. This way, unnecessary heat losses can be avoided.
It is installed using injection mortar and it can be fixed into concrete as well as into solid and perforated brick and aerated concrete, and can transfer high loads. The possibility of cutting to length on site to suit the insulation thickness enables the realisation of a lean product range.
-
Properties

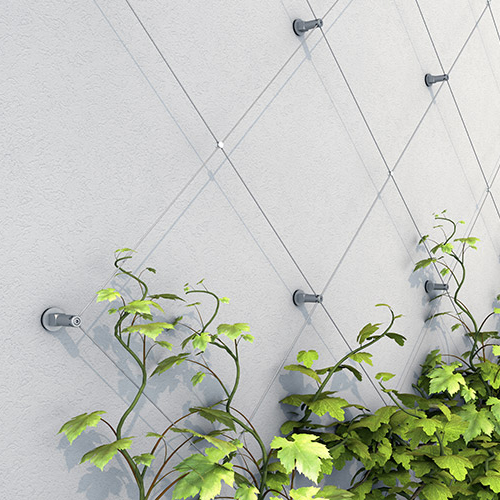

- Flexible rope attachment through adapter
- Variable rope designs/grid geometries
- Permanent seal against moisture through high-quality seal (BG1 according to DIN 18542)
- Low-classified thermal bridge effect
- Subsequent, flexible installation
- Can be cut to length on-site to suit the local side conditions
- Small product variety for insulation thicknesses up to 300 mm
- Easy and safe installation with innovative assembly tools
- Expansion-pressure free installation in the substrate
- Can also be used at temperatures down to -20 ° C in combination with Multifix USF Winter mortar
- Weather and UV-resistant
Included in delivery

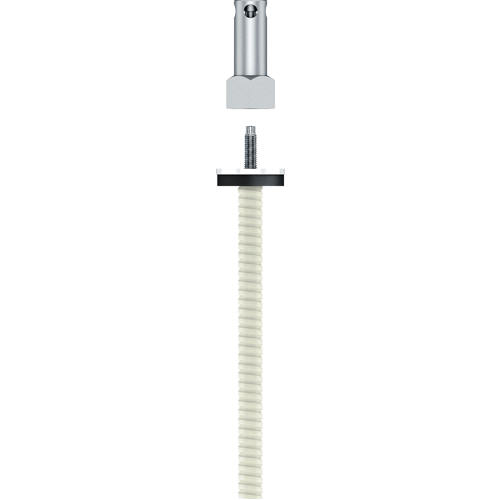

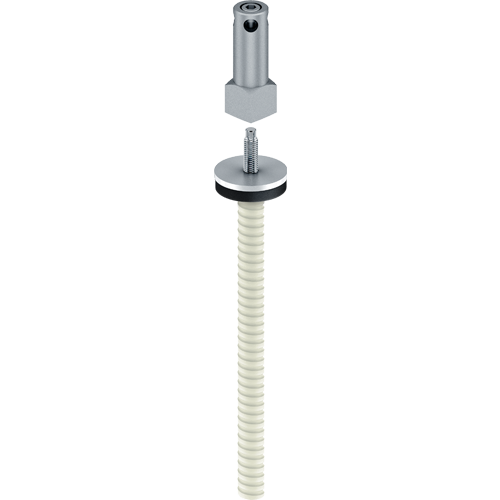

- EJOT Iso-Bar 200/260/320/380
- Washer Ø 60 mm with seal Ø 58 mm
- Adapter incl. cylinder screw
- Assembly tool
- Perforated sleeve (for use in perforated masonry-brickwork)
- Mixing nozzle expansion
-
Technical specifications
- Approval (DIBT Germany) Z-21.8-2083
- Nominal diameter [rod]: 22 mm
- Diameter [washer]: 60 mm
- Diameter [seal]: 58 mm
Max effective length* concrete/masonry
- Iso-Bar ECO 200: 160 / 120mm
- Iso-Bar ECO 260: 220 / 180mm
- Iso-Bar ECO 320: 280 / 180mm
- Iso-Bar ECO 380: 340/300mm
* max. effective Length = Thickness of non-bearing layers, e.g. glue, rendering, reinforcing material, insulating material, etc.
Installation values for anchoring in concrete (cracked and uncracked)
- Drill hole diameter: 24mm
- Min. Installation depth: 40mm
- Min. Drill hole depth: 50mm
Installation values for anchoring in masonry without mesh sleeve/with mesh sleeve
- Drill hole diameter: 24mm/26mm
- Min. Installation depth: 80mm
- Min. Drill hole depth: 100mm
Additional information
