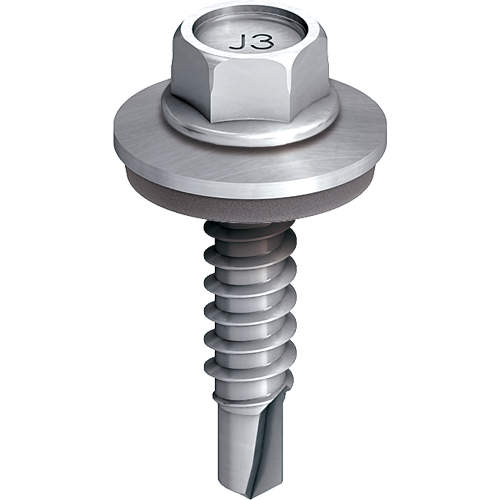

EJOT® self-drilling screw JT3-2H-Plus-5,5
Specification
-
Applications
- Side lap stitching of profiled steel sheet
- Side lap stitching of profiled aluminium sheet
- For fixing profiled steel sheet to cassette system walls
- For fixing profiled aluminium sheet to cassette system walls
-
Properties
- A2 stainless steel with hardened drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- With free spin zone under screw head for side lap stitching
-
Technical specifications
Drilling capacity I + tII: 1.0 + 2.5 mm
Drive: hexagon A/F8
JF6 made of A4 stainless steel upon request
* To see prices, please log in here.
Filter
Select system
-
RAL
Select color
- RAL7016
- RAL9002
- RAL9006
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Ø Sealing Washer mm | Head Colour | Unit | Availability | * Price / | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| JT3-2H-Plus-5,5x25-S16 | 3592211391 | 25.0 | 5.5 | 16 | 0.0 - 7.0 | Hexagon 8mm AF | |||||
| JT3-2H-Plus-5,5x25 E16 RAL 7016 | 3592211325 | 25.0 | 5.5 | 16 | 0.0 - 7.0 | Hexagon 8mm AF | |||||
| JT3-2H-Plus-5,5x25 E16 RAL 9002 | 3592211382 | 25.0 | 5.5 | 16 | 0.0 - 7.0 | Hexagon 8mm AF | |||||
| JT3-2H-Plus-5,5x25 E16 RAL 9006 | 3592211384 | 25.0 | 5.5 | 16 | 0.0 - 7.0 | Hexagon 8mm AF | |||||
| JT3-2H-Plus-5,5x30-S16 | 3592311391 | 30.0 | 5.5 | 16 | 0.0 - 12.0 | Hexagon 8mm AF | |||||
Delivery status:
- Stock
- No Stock
