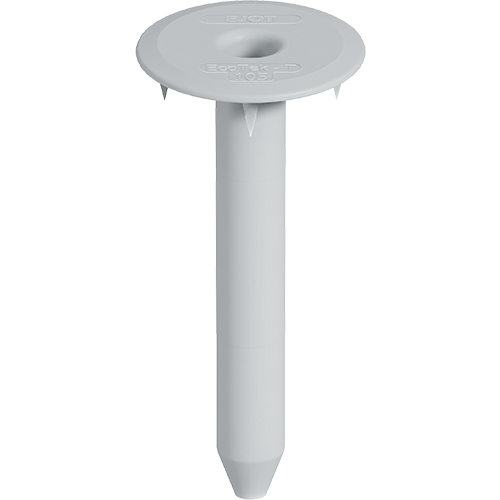

EJOT® EcoTek T 50

Specification

Applications
- To fix roofing membrane to substructures made of concrete, aerated concrete, trapezoidal steel profiles, timber and wood-based materials
- For special requirements of resistance to imposed loads
- To reduce thermal bridges
Properties
- High-grade plastic material
- Four additional teeth under the head ensure a maximum fixing of the roofing membrane
- Telescope design for resistance to imposed loads
- For insulation material thicknesses up to 590 mm (with FBS-R and JBS-R) and up to 605 mm (with TKR)
- Telescope design, prevents screw head protrusion due to foot traffic even with soft insulating material
- Conforms to the requirements according to VOB and the application class K2 according to DIN 18531 regarding corrosion resistance
Note

In combination with EJOT Dabo^® screws / with concrete and aerated concrete screws

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Length mm	Recess Depth mm	Unit
EcoTek-T-50x65	8596065007	65.0	55.0	100
Specifications Length 65.0 Recess Depth 55.0 Availability Orderidentifier EcoTek-T-50x65 Unit 100 * Price / 100
EcoTek-T-50x85	8596085007	85.0	75.0	100
Specifications Length 85.0 Recess Depth 75.0 Availability Orderidentifier EcoTek-T-50x85 Unit 100 * Price / 100
EcoTek-T-50x105	8596105007	105.0	95.0	100
Specifications Length 105.0 Recess Depth 95.0 Availability Orderidentifier EcoTek-T-50x105 Unit 100 * Price / 100
EcoTek-T-50x135	8596135007	135.0	125.0	100
Specifications Length 135.0 Recess Depth 125.0 Availability Orderidentifier EcoTek-T-50x135 Unit 100 * Price / 100
EcoTek-T-50x165	8596165007	165.0	155.0	100
Specifications Length 165.0 Recess Depth 155.0 Availability Orderidentifier EcoTek-T-50x165 Unit 100 * Price / 100
EcoTek-T-50x195	8596195007	195.0	185.0	100
Specifications Length 195.0 Recess Depth 185.0 Availability Orderidentifier EcoTek-T-50x195 Unit 100 * Price / 100
EcoTek-T-50x225	8596225007	225.0	215.0	100
Specifications Length 225.0 Recess Depth 215.0 Availability Orderidentifier EcoTek-T-50x225 Unit 100 * Price / 100
