ALtracs® Plus

Specification

  • Overview

    • The self-tapping screw for light metal
    • Suitable for lightweight construction with the optimised thread geometry facilitating the use of smaller and shorter screws, while retaining consistently high strength values
    • High clamp loads and long term stability, even under high dynamic and thermal stress
    • Up to 40% cost savings through omission of work steps for screw and component
    • Easy design engineering with the EJOT® ALtra CALC® prognosis programme
    • High vibration resistance without additional safety elements
    • High assembly safety due to low installation and failure torque
    • Where a repair is needed, a metric screw can be used in its place
    • Lower installation and higher stripping torques enable safer assembly with common pneumatic and electric screwdrivers

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

ALtracs® Plus CAD data *


Here you can directly download CAD data, PDF and DXF drawings.



ALtra CALC® Prognosis Program *

Use our prognosis program for the calculation and dimensioning of your fastening connection. This software combines the guidelines of VDI 2230 with extensive experience of EJOT in direct fastening.



CAD & more - Your Online Service Area

Unfortunately you currently have no authorization to use "CAD & more".

Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Grant Access to CAD Data

Unfortunately you currently have no authorization to use "CAD & more".

Apply for access to CAD data.

CAD & More

"CAD & More" provides you with confidential information about our products DELTA PT®, ALtracs® Plus, SHEETtracs® (CAD files, product files, drawings etc.). This data can only be accessed by customers of the EJOT Industrial Division and will not be made


  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Thank you!

Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Confirm CAD data renewal

In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not be renewed

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not process your request for CAD

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Help, guidance and technical support

Your contacts for industrial fastening systems

EJOT’s advanced fastening systems are found in countless industrial and engineering assemblies around the world. Click below for sales and technical support from one of our experienced team. We conduct inspections and observations onsite, in addition to providing help and advice direct from our UK manufacturing centre.

The specialist thread-forming solution for light metal

EJOT ALtracs® Plus screws are thread-forming fasteners developed for maximum strength values in light alloy assemblies and other non-ferrous metals such as zinc, copper or brass. Designed for direct assembly into cast holes, the ALtracs® Plus enables significant cost savings to be realised compared to metric screws through its ability to reduce the number of work steps, such as thread cutting. ALtracs® Plus builds on the original ALtracs® screw, offering improved technical capabilities and achieving strength values which are comparable to metric screw joints of the strength category 10.9.

Bespoke online design support

To achieve the desired technical performance goals with ALtracs® Plus, EJOT provides an online design tool – the EJOT ALtra CALC® prognosis programme. This has been developed using the mechanical parameters of many thousands of applications and test assemblies, making it a valuable tool for the pre-dimensioning of direct assemblies into light metal. The software contains the fastening parameters of the ALtracs® Plus screw according to the choice of material and pilot hole dimension, enabling significant time and cost savings during the design phase of a component.

CAE services - component optimisation and individual design engineering assistance

EJOT’s design support extends further during your development stages through our CAE services. With the help of innovative calculation and simulation tools we can estimate the behaviour and effect of our fastening elements on your proposed component under various loads. This enables us to give you respective recommendations that you can depend on. For example, we can calculate the clamp load relaxation of individual screw joints and also to analyse the behaviour of the complete assembly. Read more...

Optimised thread design

The thread geometry plays an important role for direct assembly into light metal as the different material strength properties of steel and light metal require a special design of the steel screw. ALtracs® Plus features a 33° screw flank angle which forms a considerably stronger female thread compared to more typical 60° threads. As a result, the female thread in the weaker light metal material is strengthened by the larger thread root, resulting in a balanced strength ratio. The asymmetric thread flank results in optimal material displacement and it creates a large thread engagement area. Ultimately, this thread geometry allows a higher loading of every single turn of thread so the fastener reaches the failure criterion screw fracture at clearly shorter insertion depths.

Safe assembly

The design of ALtracs® Plus also optimises safety during assembly. The resulting low installation and high failure torques of the ALtracs® Plus facilitate a broad range for secure installation with simple pneumatic and electric drivers. Torque and torque angle controlled tightening processes are also possible beyond yield strength of the screw as the failure mode stripping or screw fracture can be specified. The circular cross section, in combination with various installation depths (1 to 2,5 x d), allows a high degree of flexibility in the choice of the appropriate fastening system. The sharp thread flanks of ALtracs® Plus in conjunction with the non-circular thread forming zone enable centred alignment and easy tightening of the screw even in cast holes.

ALtracs® Plus WN 51 Head Styles and Drives

  • WN5117 hexagon flange head
  • WN5151 round washer head with TORX PLUS®/AUTOSERT

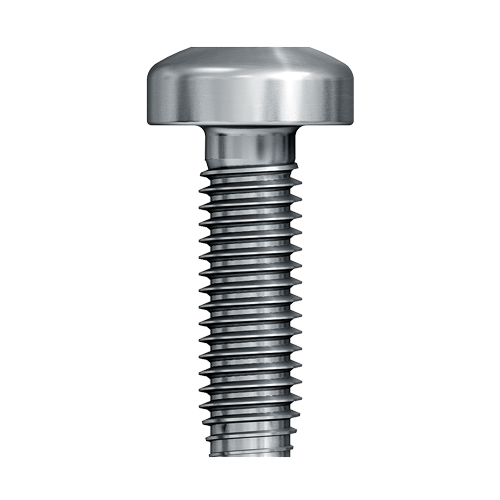

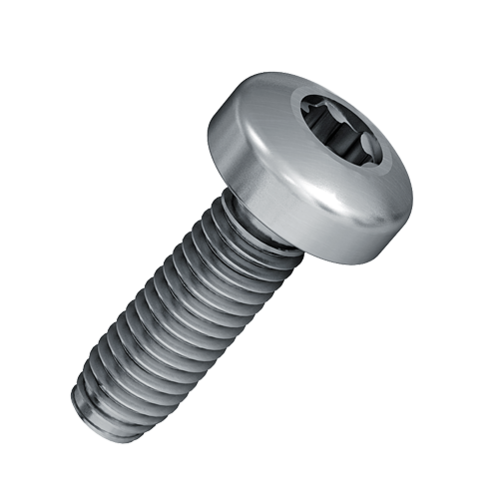

  • WN5152 pan head with TORX PLUS®/AUTOSERT
  • WN5153 oval countersunk head with TORX PLUS®/AUTOSERT
  • WN5154 flat countersunk head with TORX PLUS®/AUTOSERT

For detailed information, please refer to the EJOT company standard.

You can download these in our service area "CAD & more".

Click here to register: "CAD & more"
