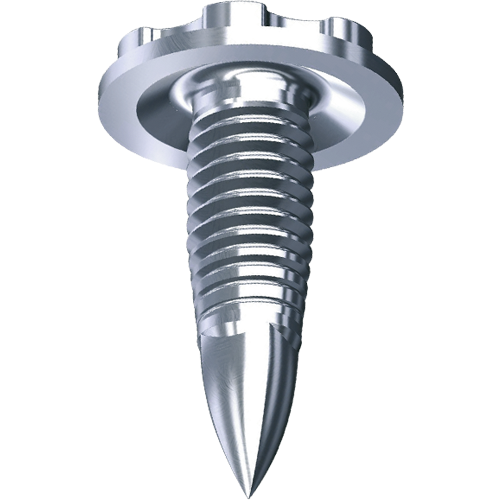

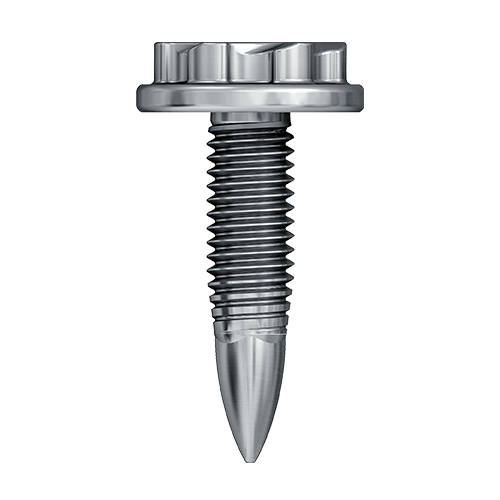

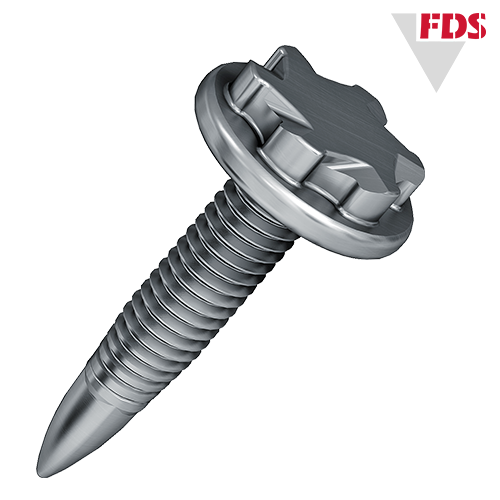

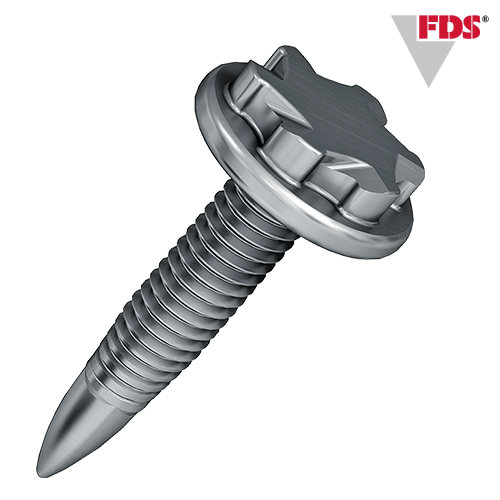

FDS®

Specification

  • Overview

    • One-sided accessibility
    • Removable and high quality screw joint, without part preparations, such as pre-drilling or
      punching
    • No tolerance problems with clearance or threaded holes
    • No material waste and no swarf
    • Use with various sheet surfaces
    • High loosening torque and vibration resistance, no need for additional safety elements
    • Easy removal and recycling
    • Repeat assemblies also possible with metric screws

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

FDS® Application Check *

Our Application Check allows you to make a general statement about the feasibility of your individual joining task.



CAD & more - Your Online Service Area

Unfortunately you currently have no authorization to use "CAD & more".

Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Grant Access to CAD Data

Unfortunately you currently have no authorization to use "CAD & more".

Apply for access to CAD data.

CAD & More

"CAD & More" provides you with confidential information about our products DELTA PT®, ALtracs® Plus, SHEETtracs® (CAD files, product files, drawings etc.). This data can only be accessed by customers of the EJOT Industrial Division and will not be made


  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Thank you!

Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Confirm CAD data renewal

In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not be renewed

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not process your request for CAD

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

EVO PT® Calculation Form *

You can use the following form to order calculations for the screw types EVO PT®, DELTA PT® and ALtracs® Plus.



CAD & more - Your Online Service Area

Unfortunately you currently have no authorization to use "CAD & more".

Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Grant Access to CAD Data

Unfortunately you currently have no authorization to use "CAD & more".

Apply for access to CAD data.

CAD & More

"CAD & More" provides you with confidential information about our products DELTA PT®, ALtracs® Plus, SHEETtracs® (CAD files, product files, drawings etc.). This data can only be accessed by customers of the EJOT Industrial Division and will not be made


  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Thank you!

Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Confirm CAD data renewal

In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not be renewed

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not process your request for CAD

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Help, guidance and technical support

Your contacts for industrial fastening systems

EJOT’s advanced fastening systems are found in countless industrial and engineering assemblies around the world. Click below for sales and technical support from one of our experienced team. We conduct inspections and observations onsite, in addition to providing help and advice direct from our UK manufacturing centre.

High strength sheet metal joints

Today’s demands on fastening technology are greater than ever, especially in the fast-moving automotive industry where the used components have to withstand high stress. Car body construction, for example, increasingly uses composite design where different materials have to be fastened securely and lastingly. In such applications, one-sided accessibility and the removability of the fastener is also very important, particularly with regard to recyclability. These complex conditions require innovative solutions like the EJOT FDS® screw, which fastens thin sheet metals made of steel and aluminium without the need for a pilot hole to an excellent quality standard. And due to the increased thread engagement in the formed draught, a high-strength joint is created without the issue of metal chipping. The result is a screw joint that is able to transfer high pull-out as well as shearing forces.

Rapid assembly without holes

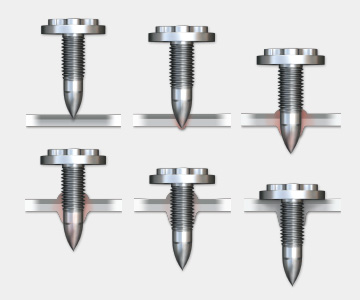

With EJOT FDS®, joining processes are faster and more efficient because work steps such as pre-drilling or pre-punching are no longer necessary. Through the optimisation of the fastener layout, the joining of a body-in-white in space frame structure can be carried-out completely without pre-drilling. Here, the fastening parameters, where adjusted, and the geometry of the FDS® screw below the screw head are optimised, to accommodate the small amount of the material that flows against the fastening direction. It is a design that means the clearance hole no longer needs to take up the displaced material as this is now absorbed by the increased space below the FDS® screw head. It is a six-stage process – warming up, penetration of the material, forming of the through draught, thread forming, full thread engagement and tightening.

Fastening tool selection support

Flow drilling, thread-forming and tightening of the screw require a high torque which means a higher screwdriver speed and a defined end load is needed for installation. Suitable screwdrivers have been developed by a number of different manufacturers in conjunction with EJOT®. It is important to make sure you choose the most suitable tool for your application from those available. The FDS® product management team will provide technical assistance here, including by helping you to determine the selection criteria through assembly tests in the EJOT® APPLITEC laboratory.

FDS® Application Check

The EJOT FDS® is a flow drilling screw for high-strength sheet metal joints, which is used without component preparations like drilling or punching. Using our online tool, the FDS® Application Check, you can determine the relevant benchmarks for the screwing task by specifying the sheet metal components to be joined. These benchmarks include the required pressure force, as well as a recommendation for tightening torque for various surfaces. Additional comments about the feasibility of the joints help you to make informed decisions and complete the tool.

You can find this in our service area "CAD & more" under "calculation service".

Click here to register: "CAD & more"

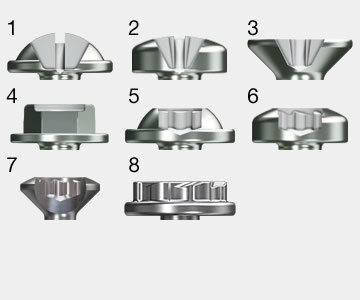

FDS® WN 21 Head Styles and Drives

  • WN2141 round washer head with cross recess Z (or H)
  • WN2142 pan head with cross recess Z (or H)
  • WN2143 flat countersunk head with cross recess Z (or H)
  • WN2147 hexagon head with washer
  • WN2151 round washer head with TORX®
  • WN2152 pan head with TORX®
  • WN2153 oval countersunk head with TORX®

For detailed information, please refer to the EJOT company standard.

You can download these in our service area "CAD & more".

Click here to register: "CAD & more".

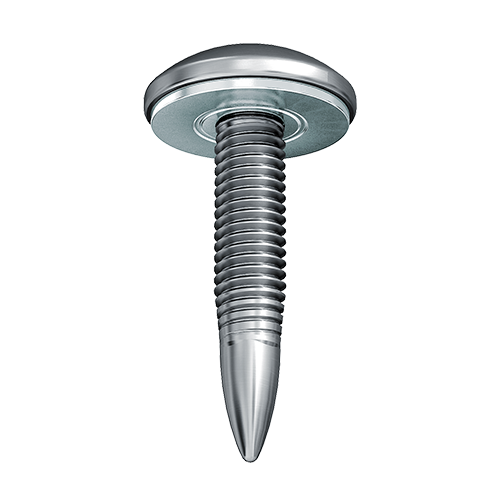

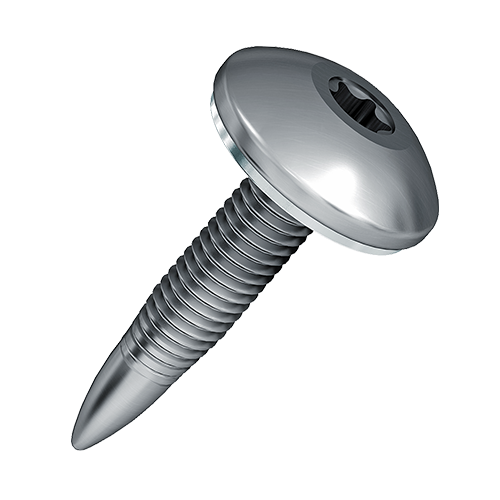

FDS® flow-drill screw assembly with additional sealing function

A pre-assembled embossed aluminium sealing washer provides an under-head seal of this special version of the FDS® screw. Current applications in e-mobility are particularly suitable for this screw in areas such as battery box fastening, where the sealing washer is needed to prevent water ingress. The waterproofing function (1m water column / 24H) is achieved by the sealing surface of the aluminium washer. Pre-drilling of the clamping part is necessary for this application.

The diameter of the underside of the washer is smaller in size than the clamping part hole, ensuring it is outside of the sealing area. Due to the automated feeding, the sealing washer has to be 1mm smaller in dimension than the head diameter. The captive washer is assembled fully automated, but it remains rotatable.
