SDF S plus 8UB
For fastening brick slip systems & anchors for concrete and masonry

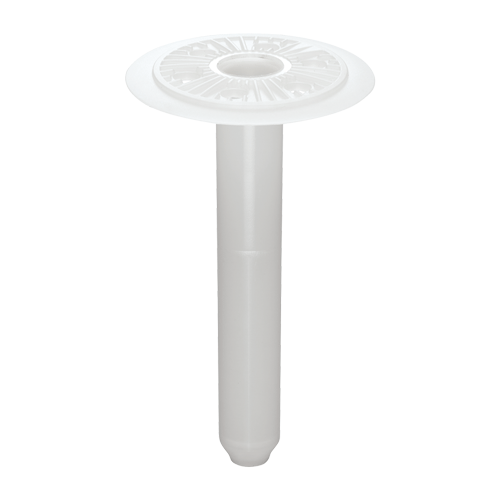

EJOT® TE 60/110
Specification
-
Application range and properties
- Fastening of External Thermal Insulation Systems on problematic substrates.
- To combine with EJOT SDF-S plus 8UB.
-
Properties
- Shaft length EJOT TE 60/50: 50mm
- Shaft length EJOT TE 60/110: 110mm
- Washer diameter: 60 mm
- Srew drive: RX T30
- Drill hole depth h1 ≥ 80 mm
- Embedment depth hef ≥ 70 mm
- Point thermal transmission EJOT TE 60/50 with insulation material thicknesses 60 - 180 mm: 0.002 W/K
- Point thermal transmission EJOT TE 60/110 with insulation material thicknesses 120 - 150 mm: 0.000 W/K
- Point thermal transmission EJOT TE 60/110 with insulation material thicknesses 150 - 240 mm: 0.001 W/K
- European Technical Assessment ETA-04/0064
-
Characteristic loads when combined with EJOT SDF-S plus UB:
EJOT TE 60/50 and 60/110 in combination with EJOT SDF-S plus 8UB
- Shaft length EJOT TE 60/50: 50 mm
- Shaft length EJOT TE 60/110: 110 mm
- Washer diameter: 60 mm
- Screw drive: TX30
- Drill hole depth h1 ≥ : 80 mm
- Embedment depth hef ≥ : 70 mm
- Point thermal transmission χ TE 60/50: 0.002 W/K
- Point thermal transmission χ TE 60/110 with insulation thickness 120-150 mm: 0.000 W/K
- Point thermal transmission χ TE 60/110 with insulation thickness 150-240: 0.001 W/K
- European Technical Approval ETA-04/0064
Additional information
ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.
| Orderidentifier | Article Number | Washer diameter mm | Length mm | Unit | |||
|---|---|---|---|---|---|---|---|
| TE 60/110 Tube Washer | 8533110000 | 60.0 | 110.0 | Special ETICS Solutions | 70.0 | 80.0 | 100 |
