Bit T25-1/4'' x 25mm
For use in conjunction with a drive bit holder

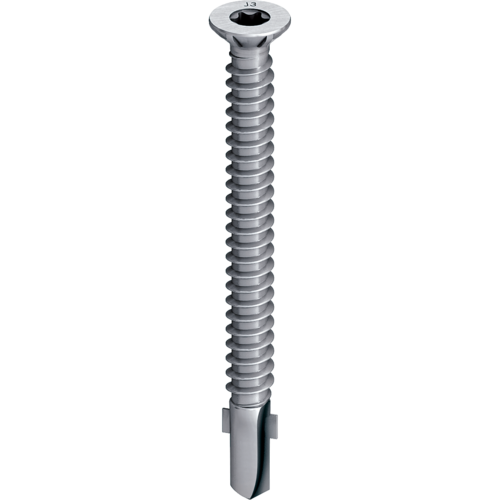

EJOT® JT3 WD 6 5.5
Specification
-
Applications
- For securing timber and sheathing baoads to steel sections
-
Properties
- The wings ream out the timber/sheathing board and shatter upon contact with the steelwork, allowing the fixing to self drill and tap into the steel.
- Underhead serrations to increase installation reliability to aid countersinking
-
Technical specifications
- Diameter: 5.5mm
- Drilling capacity: 2.0mm to 6.0mm
- Drive: Torx T25
- Material: A2 (304) Stainless steel bi-met.
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Drive | Length mm | ø mm | Ø Sealing Washer mm | Clamp thickness mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|
| JT3-WD-6-5,5x 45-R | 7382195301 | TORX T25 | 45.0 | 5.5 | 0 - none | 0.0 - 26.0 | 100 | |||
| JT3-WD-6-5,5x 65-R | 7382194301 | TORX T25 | 65.0 | 5.5 | 0 - none | 0.0 - 46.0 | 100 | |||
