CF15 JT2 D12 5.5/6.3
For steel faced insulated sandwich panels

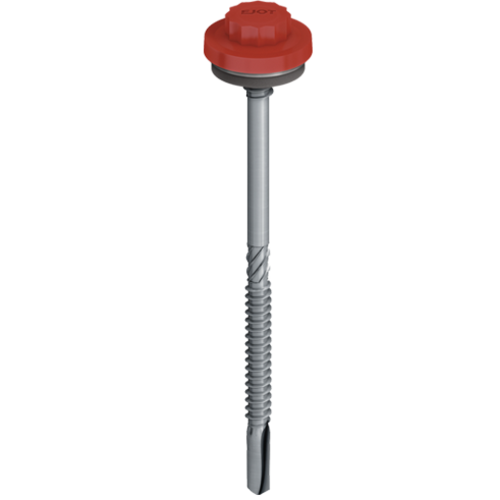

COLORFAST® CF19 JT2 D12 5.5/6.3
Specification
-
Applications
- Steel faced insulated sandwich panels.
- Steel sections from 4.0mm to 12.0mm in thickness.
-
Properties
- Carbon steel fastener with organic corrosion resistant finish assembled with integral nylon head.
-
Technical specifications
- Drive: 11mm Bi Hex
- Washer ø: 19mm
- Note: This product is available with a 15mm washer (CF15 JT2 D12 5.5/6.3) or a 29mm washer (CF29 JT2 D12 5.5/6.3)
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Select system
-
BSC
Select unit
- Goosewing Grey BCS 10-A-05
- White BSC 00-E-55
-
RAL
Select unit
- RAL7016
- RAL9002
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | High thread Ø mm | Ø CF Sealing Washer | Head Colour | Clamp thickness mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CF19 JT2-D12-5.5/6.3 x 95 Signal white BSC 00 E 55 | 9900107783 | 95.0 | 5.5 | 6.3 | 19 | 53.0 - 71.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 95 Goosewing Grey BSC 10-A-05 | 9900107803 | 95.0 | 5.5 | 6.3 | 19 | 53.0 - 71.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 95 Anthracite Grey RAL 7016 | 9900108500 | 95.0 | 5.5 | 6.3 | 19 | 53.0 - 71.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 135 Signal white BSC 00-E-55 | 9900108089 | 135.0 | 5.5 | 6.3 | 19 | 73.0 - 111.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 155 Goosewing Grey BSC 10-A-05 | 9900108098 | 155.0 | 5.5 | 6.3 | 19 | 93.0 - 133.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 195 Signal White BSC 00-E-55 | 9900108103 | 195.0 | 5.5 | 6.3 | 19 | 123.0 - 173.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 235 Grey white RAL 9002 | 9900107784 | 235.0 | 5.5 | 6.3 | 19 | 163.0 - 213.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 250 Goosewing grey BSC 10-A-05 | 9900108928 | 250.0 | 5.5 | 6.3 | 19 | 178.0 - 228.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 275 Goosewing grey BSC 10-A-05 | 9900108929 | 275.0 | 5.5 | 6.3 | 19 | 203.0 - 253.0 | 100 | ||||
| CF19 JT2-D12-5.5/6.3 x 300 Goosewing grey BSC 10-A-05 | 9900108930 | 300.0 | 5.5 | 6.3 | 19 | 228.0 - 278.0 | 100 | ||||
