SDS plus Hammer Drill Bit
For drilling concrete, brickwork, stone and more

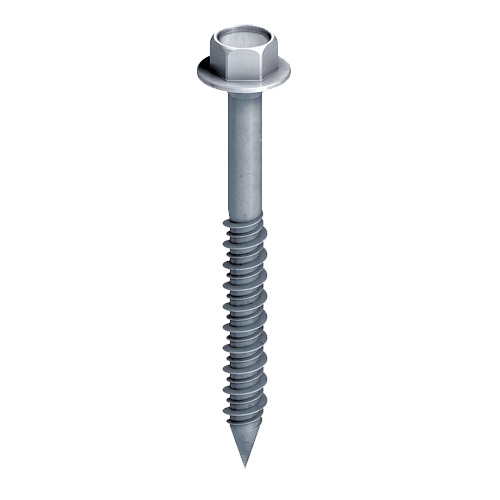

EJOT® BS R 6.3
Specification
-
Applications
- Steel sections, brackets or tracking to Concrete and solid brick
-
Properties
- Case-hardened steel
- Climadur coated – high-quality coating to improve the corrosion protection
-
Technical specifications
- Drive: 8mm Clip Hex One Piece Socket
- Minimum embedment depth: 30 mm
- Pilot hole 5mm diameter
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Pilot Hole Ø mm | Drive | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|
| BS R 6.3 x 35 Concrete screw | 5663035512 | 35.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 45 Concrete screw | 5663045512 | 45.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 100 Concrete screw | 5663100512 | 100.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 120 Concrete screw | 5663120512 | 120.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 140 Concrete screw | 5663140512 | 140.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 160 Concrete screw | 5663160512 | 160.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 180 Concrete screw | 5663180512 | 180.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 200 Concrete screw | 5663200512 | 200.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
| BS R 6.3 x 240 Concrete screw | 5663240512 | 240.0 | 6.3 | 5.0 | 8mm Hexagon Head AF | 100 | |||
Delivery status:
- Stock
- No Stock
