JC2-ST 6
For temporary fastening, shelves, cable racks and timber battens

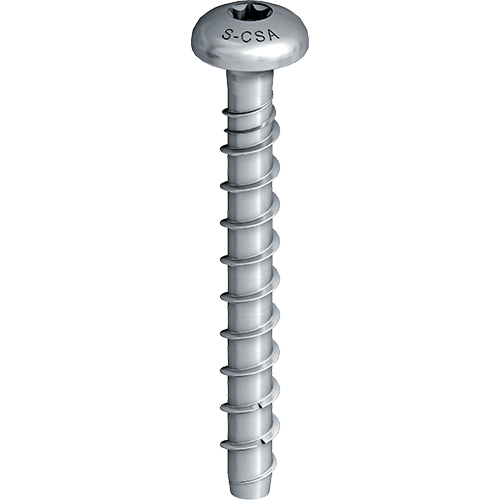

EJOT® JC2-FR 6
Specification
-
Applications
- For dry indoor use
- Typical applications include facade scaffolds & temporary structures, industrial shelving, cable trays, railings, stairs & battens
-
Properties
- Galvanised zinc-plated steel
- Pan head
- Drive: TORX T30
- Lenths: 35 – 60mm
- No expansion forces, therefore reduced edge distance and spacing
- Self-tapping screw anchor for push-through installation
- Completely removable
-
Technical Specifications
- ETA Approved for cracked, non-cracked concrete & pre-stressed hollow core slab
- Also suitable for clay, sandstone, or lime brickwork
- Fire resistance: R120
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Clamping thickness tfix≤ mm |
Pilot Hole Ø mm | Drive | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|
| JC2 FR 6X35/1 (L) ZP | 9650071543 | 35.0 | 0.0 - 5.0 | 6.0 | TORX T30 | 100 | |||
| JC2-FR 6x45/5 Concrete Screw | 9650071545 | 45.0 | 5.0 - 20.0 | 6.0 | TORX T30 | 100 | |||
| JC2-FR 6x60/5/20 Concrete Screw | 9650071549 | 60.0 | 0.0 - 1.0 | 6.0 | TORX T30 | 100 | |||
