JC2-KB Plus 10
For a number of applications such as facade scaffolds & frameworks

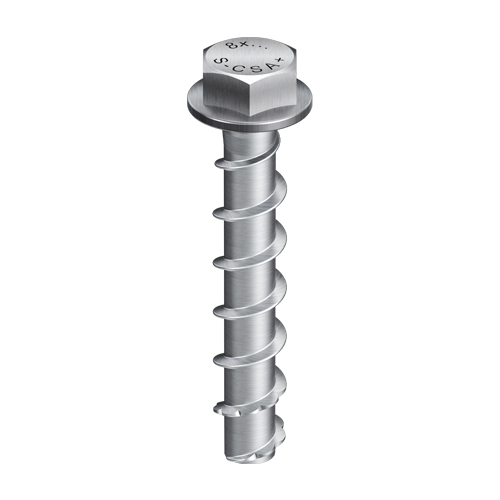

EJOT® JC2-KB Plus 8
Specification
-
Applications
- For dry indoor use
- Typical application include facade scaffolds & temporary structures, industrial shelving, cable trays, railings, stairs & battens
-
Properties
- Galvanised zinc-plated steel
- Hexagon head with flange
- Drive: SW13
- Lengths: 55 – 140mm
- No expansion forces, therefore reduced edge distance and spacing
- Self-tapping screw anchor for push-through installation
- Completely removable & reusable
- Two embedment depths
-
Technical specifications
- ETA Approved for cracked & non-cracked concrete
- Also suitable for clay, sandstone, or lime brickwork
- Fire resistance: R120
- DibT Approved
- Seismic Resistance
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Clamping thickness tfix≤ mm |
Pilot Hole Ø mm | Drive | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|
| JC2-KB Plus 8x55/5 Concrete Screw | 9650071700 | 55.0 | 5.0 | 8.0 | SW 13 | 100 | |||
| JC2-KB Plus 8x70/5/20 Concrete Screw | 9650071709 | 70.0 | 5.0 - 20.0 | 8.0 | SW 13 | 100 | |||
| JC2-KB Plus 8x80/15/30 Concrete Screw | 9650071715 | 80.0 | 15.0 - 30.0 | 8.0 | SW 13 | 100 | |||
| JC2-KB Plus 8x90/25/40 Concrete Screw | 9650071721 | 90.0 | 25.0 - 40.0 | 8.0 | SW 13 | 100 | |||
| JC2-KB Plus 8x100/35/50 Concrete Screw | 9650071724 | 100.0 | 35.0 - 50.0 | 8.0 | SW 13 | 100 | |||
| JC2-KB Plus 8x120/55/70 Concrete Screw | 9650071730 | 120.0 | 55.0 - 70.0 | 8.0 | SW 13 | 100 | |||
| JC2-KB Plus 8x140/75/90 Concrete Screw | 9650071736 | 140.0 | 75.0 - 90.0 | 8.0 | SW 13 | 100 | |||
Delivery status:
- Stock
- No Stock
