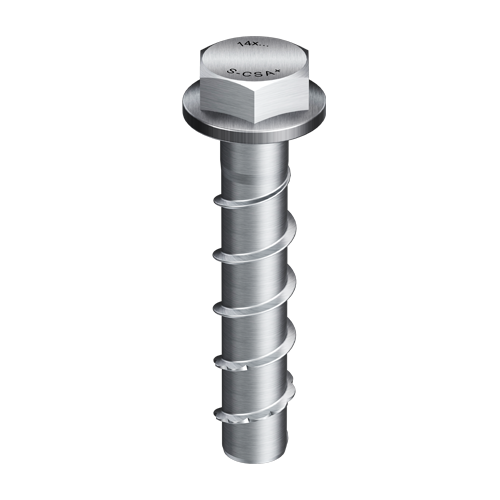

JC2-KB Plus
For applications such as handrails, battens & formworks
EJOT® JC2-KB Plus 14
Specification
-
Applications
- For dry indoor use
- Typical applications include facade scaffolds & temporary structures, industrial shelving, cable trays, railings, stairs & battens
-
Properties
- Galvanised zinc-plated steel
- Hexagon head with flange
- Drive: SW21/ SW24
- Lengths: 75 – 150mm
- No expansion forces, therefore reduced edge distance and spacing
- Self-tapping screw anchor for push-through installation
- Completely removable & reusable
- Two embedment depths
-
Technical specifications
- ETA Approved for cracked & non-cracked concrete
- Also suitable for clay, sandstone, or lime brickwork
- Fire resistance: R120
- DibT Approved
- Seismic Resistance
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Drive | Length mm | Pilot Hole Ø mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|
| JC2 Plus KB 14X80/15 SW24 | 9650071791 | SW 24 | 80.0 | 14.0 | 100 | |||
| JC2 Plus KB 14X110/45 SW24 | 9650071817 | SW 24 | 110.0 | 14.0 | 100 | |||
| JC2 Plus KB 14X130/15/65 SW24 | 9650071827 | SW 24 | 130.0 | 14.0 | 100 | |||
