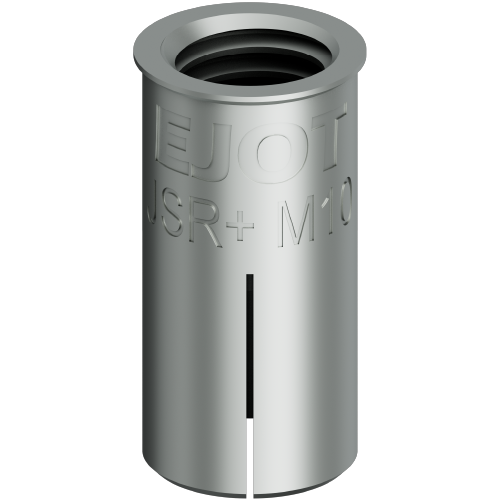

EJOT® JSR+ Drop-in Anchor

Specification

Applications
- For dry indoor and temporary outdoor use
- Suitable bolt length is 1-1.3 x the nominal size of the anchor + fixture thickness
Properties
- Zinc-plated short M8/M10 drop-in anchor with flange
- Internal thread for metric bolts and rods
- M10 – M12 options available
- Lengths: 25mm
Technical specifications
- ETA Approved for cracked concrete, non-cracked concrete & hollow core slab
- Also suitable for natural stone & solid clay brick
Additional information

Downloads

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Thread	Length mm	Material	Pilot Hole Ø mm	Unit
Drop in anchor JSR+ 8x25	9650070108	M8	25.0	Zinc Plated Carbon Steel	10.0	100
Specifications Thread M8 Length 25.0 Material Zinc Plated Carbon Steel Pilot Hole Ø 10.0 Availability Orderidentifier Drop in anchor JSR+ 8x25 Unit 100 * Price / 100
Drop in anchor JSR+ 10x25	9650070110	M10	25.0	Zinc Plated Carbon Steel	12.0	100
Specifications Thread M10 Length 25.0 Material Zinc Plated Carbon Steel Pilot Hole Ø 12.0 Availability Orderidentifier Drop in anchor JSR+ 10x25 Unit 100 * Price / 100
