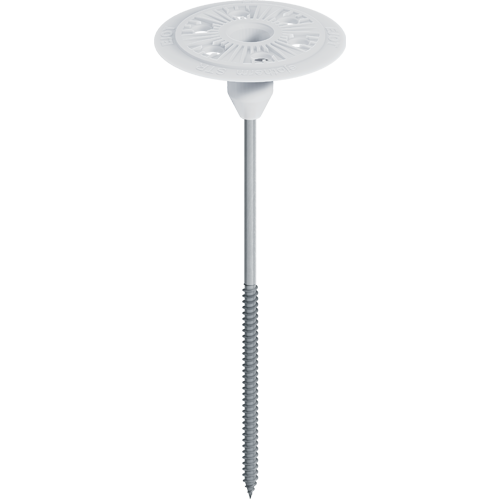

EJOT® ejotherm® STR H

Specification

Applications
- Screw fastener for countersunk and surface fixed installation
- for timber and some steel substrates
- For timber and steel (max. 0.75 mm) substrates
- For all insulation boards
- For countersunk and surface fixed installation
Properties
- Fastener, consistent of a galvanized steel screw, included washer and EPS sealing plug.
- Countersunk Installation - EJOT STR principle with ejotherm STR cap for homogeneous surfaces and even rendering - quick and easy without milling dust
- No drilling necessary
- Surface fixed Installation using ejotherm STR plug
- Permanent contact pressure
- Premounted screw for quick installation
- 100% setting control: the countersunk Installation of the washer indicates safe anchorage
Technical specifications
- Screw diameter: 6 mm
- Washer diameter: 60 mm
- Screw-in depth: 30 - 40 mm
- Screw drive: TX25
- Point thermal transmission χ:
  countersunk installation in timber substrates: 0.001 W/K
  surface fixed installation in timber substrates: 0.002 W/K
Recommended use loads:
- Wood fibreboards (thickness ≥ 17.0 mm): 0.25 kN
- Chipboards (thickness ≥ 13.0 mm): 0.25 kN
- Gypsum fibreboards (thickness ≥ 12.5 mm): 0.15 kN
- OSB plates (thickness ≥ 16.0 mm): 0.25 kN
- Solid wood plates (thickness ≥ 27.0 mm): 0.25 kN
The recommended use loads are calculated with a safety factor of 3. They may differ according to the object.

Downloads

STR_H_en_GB.pdf 1 MB
Safety data sheet.pdf 33 KB
EPD Fastening solutions for ETICS.pdf 1 MB
DoP ETA-20/0670.pdf 1 MB
ETA-20/0670.pdf 2 MB

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.

Filter

Selected filters

Orderidentifier	Article Number	Washer diameter mm	Length mm	Type of ETICS Anchors	Construction way		Unit
Ejotherm STR H 80	8711080400	60.0	80.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 80.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier Ejotherm STR H 80 Unit 100
ejotherm STR H 100	8711100400	60.0	100.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 100.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 100 Unit 100
ejotherm STR H 120	8711120400	60.0	120.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 120.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 120 Unit 100
ejotherm STR H 140	8711140400	60.0	140.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 140.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 140 Unit 100
ejotherm STR H 160	8711160400	60.0	160.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 160.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 160 Unit 100
ejotherm STR H 180	8711180400	60.0	180.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 180.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 180 Unit 100
ejotherm STR H 200	8711200400	60.0	200.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 200.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 200 Unit 100
ejotherm STR H 220	8711220400	60.0	220.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 220.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 220 Unit 100
ejotherm STR H 240	8711240400	60.0	240.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 240.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 240 Unit 100
ejotherm STR H 260	8711260400	60.0	260.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 260.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 260 Unit 100
ejotherm STR H 280	8711280400	60.0	280.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 280.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 280 Unit 100
ejotherm STR H 300	8711300400	60.0	300.0	Washer Anchors	countersank and surface fixed installation	screw-in-anchor	100
Specifications Washer diameter 60.0 Length 300.0 Type of ETICS Anchors Washer Anchors Construction way countersank and surface fixed installation Screw-in-/hammer-inanchor screw-in-anchor Orderidentifier ejotherm STR H 300 Unit 100
